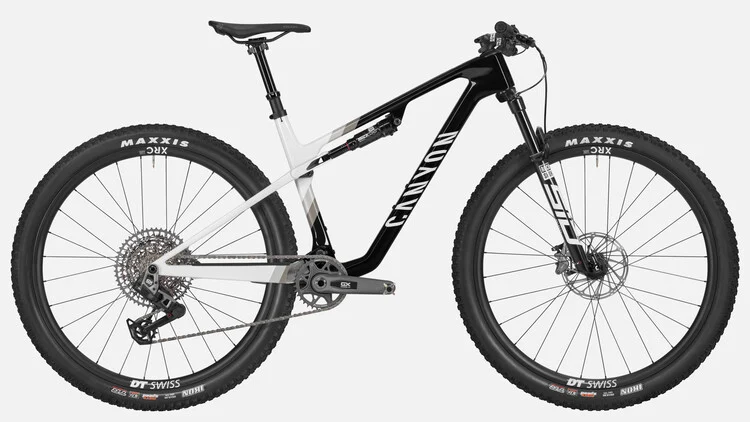

Lux World Cup CF 9

Frame

• Frame
  • Canyon Lux WC CF
  • Lightweight full-suspension carbon XC frame, featuring the World Championship-winning design DNA of the flagship Lux World Cup CFR.
  • Axle dimension: 12x148 mm
  • Material: Carbon (CF)
  • Weight: 2.76 lbs
• Rear Shock
  • RockShox SIDLuxe Select+ 3P Remote
  • Weight: 0.56 lbs

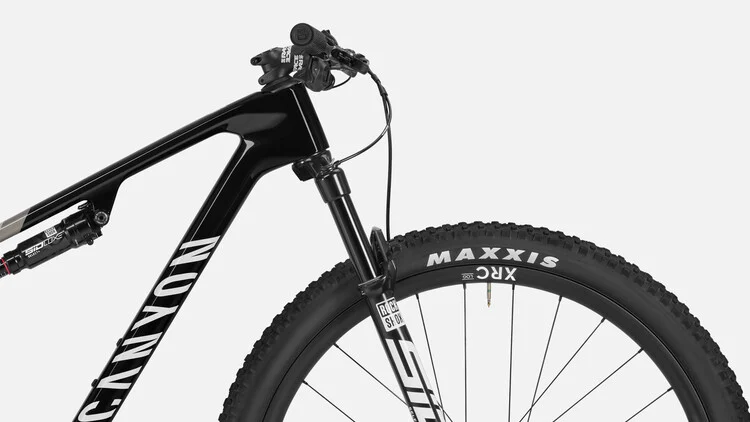

• Suspension Fork
  • RockShox SID SL Select+
  • Axle dimension: 15x110 mm
  • Stanchion Diameter: 32 mm
  • Travel: 110 mm
  • Fork steer tube diameter: 1 1/8" - 1,5"
  • Offset: 44 mm
  • Weight: 3.13 lbs

Drivetrain

• Battery
  • SRAM Powerpack
• Rear Derailleur
  • SRAM GX Eagle AXS Transmission
  • Weight: 1.02 lbs
• Shift Lever
  • SRAM AXS POD Rocker
  • Weight: 0.17 lbs
• Cassette
  • SRAM XS-1275 Eagle Transmission
  • Number of sprockets: 12
  • Range: 10-52
• Crank
  • SRAM GX Eagle
  • Number of chainrings: 1
• Bottom bracket
  • SRAM DUB
  • Bottom bracket standard: PF 92
  • Weight: 0.18 lbs
• Chain
  • SRAM GX Eagle Transmission

Brakes

• Disc Brake
  • SRAM Level Bronze Stealth 2-Piston
  • Number of pistons: 2
• Disc Brake
  • SRAM Level Bronze Stealth 2-Piston
  • Number of pistons: 2
• Brake Rotor
  • SRAM Centerline Rounded
  • Size: 160 mm
  • Weight: 0.25 lbs
• Brake Rotor
  • SRAM Centerline Rounded
  • Size: 180 mm
  • Weight: 0.37 lbs

Wheels

• Wheel
  • DT Swiss XRC LOG
  • Axle dimension: 15x110 mm
  • Rotor mount: IS 6-bolt
  • Inner width: 30 mm
  • Rim material: Carbon
  • Weight: 1.83 lbs
• Wheel
  • DT Swiss XRC LOG
  • Axle dimension: 12x148 mm
  • Rotor mount: IS 6-bolt
  • Inner width: 30 mm
  • Rim material: Carbon
  • Weight: 2.08 lbs
• Tyre
  • Maxxis Ikon EXO MaxxSpeed
  • Width: 2.35"
  • Weight: 1.84 lbs
• Thru Axle
  • Canyon Quixle Through Axle QR 148x12
  • Axle dimension: 12x148 mm

Cockpit

• Stem
  • Race Face Ride
  • Fork steer tube diameter: 1 1/8" - 1 1/4"
• Handlebar
  • Race Face Ride Rise
  • Clamping diameter: 31,8 mm
  • Width: 740 mm

Seat

• Saddle
  • Ergon SR10 Pro Sport
  • Gender: Male
  • Weight: 0.55 lbs

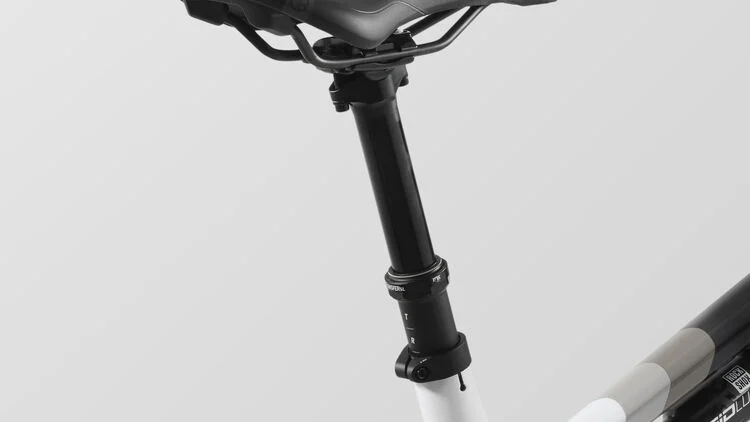

• Seatpost
  • FOX Transfer SL Performance Elite
  • Clamp diameter: 30,9 mm
  • Material: Aluminium (AL)
  • Weight: 0.90 lbs
• Seat Clamp
  • Canyon SC0001

Accessories

• Pedals
  • None included
• Manuals and Accessories
  • Canyon Organza Bag
• Manuals and Accessories
  • Canyon Assembly Paste
• Manuals and Accessories
  • Canyon Smallbox
• Manuals and Accessories
  • Canyon Torque Wrench
• Manuals and Accessories
  • Quick Start Guide
• Manuals and Accessories
  • Canyon Shock Pump 300 Psi
