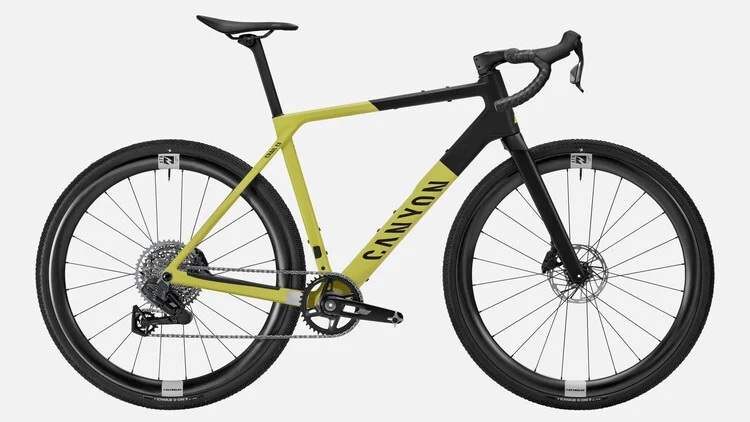

Grail CF SL 7 AERO

Frame

• Frame
  • Canyon Grail CF SL

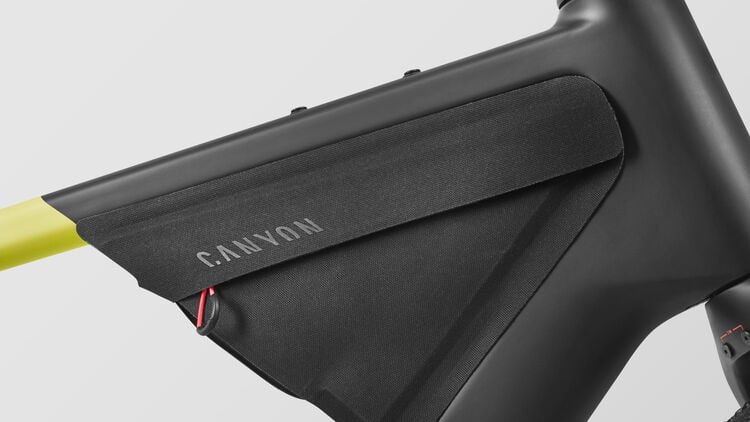

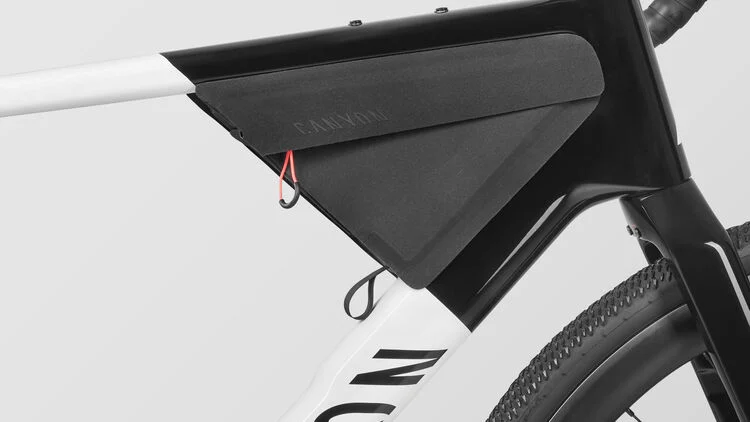

  • Latest-generation Grail carbon gravel race bike with more capable geometry, aero tube forms, top tube mounts and strapless bag compatibility.
  • Axle dimension: 12x142 mm
  • Tyre clearance: 42 mm
  • Material: Carbon (CF)
  • Weight: 2.69 lbs
• Fork
  • Canyon FK0117 CF Disc
  • Robust, stiff, compliant carbon fork. Compatible with LOAD Fork Sleeve Quickloader system for modular, secure storage.
  • Axle dimension: 12x100 mm
  • Fork steer tube diameter: 1 1/8"
  • Tyre clearance: 42 mm
  • Material: Carbon (CF)
  • Weight: 1.02 lbs

Drivetrain

• Battery
  • SRAM Powerpack
• Rear Derailleur
  • SRAM RIVAL
• Cassette
  • SRAM RIVAL
  • Number of sprockets: 13
• Crank
  • SRAM Rival XPLR
  • Number of chainrings: 1
• Bottom bracket
  • SRAM Pressfit DUB Wide
  • Bottom bracket standard: PF 86,5
  • Weight: 0.14 lbs
• Chain
  • SRAM Rival E1

Brakes

• Shift-/ Brake Lever
  • SRAM RIVAL
  • Weight: 0.83 lbs
• Shift-/ Brake Lever
  • SRAM Rival AXS Shift Brake Lever
  • Number of pistons: 2
  • Weight: 0.84 lbs
• Brake Rotor
  • SRAM Paceline
  • Size: 160 mm
  • Weight: 0.31 lbs

Wheels

• Wheel
  • Reynolds ATR TSS
  • Axle dimension: 12x100 mm
  • Rotor mount: Center Lock
  • Rim material: Aluminium
• Wheel
  • Reynolds ATR TSS
  • Axle dimension: 12x142 mm
  • Rotor mount: Center Lock
• Tyre
  • Schwalbe G-One R Performance
  • Width: 40 mm
  • Weight: 1.07 lbs
• Thru Axle
  • DT Swiss Front Thru Axle
  • Axle dimension: 12x100 mm
  • Material: Aluminium (AL)
• Thru Axle
  • DT Swiss Through Axle with Lever Torx25
  • Axle dimension: 12x142 mm
  • Material: Aluminium (AL)

Cockpit

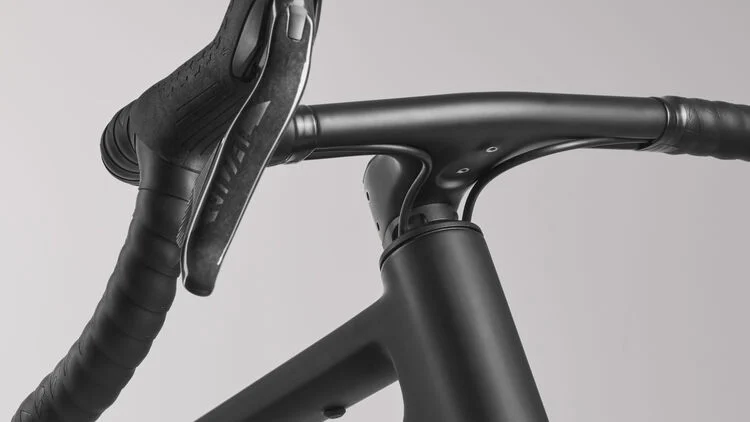

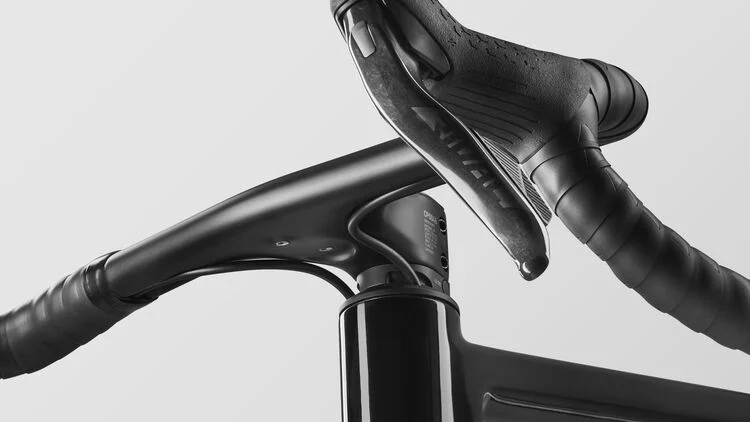

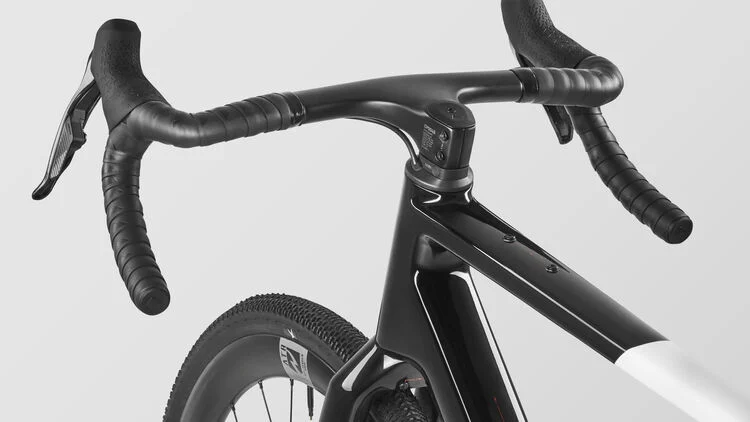

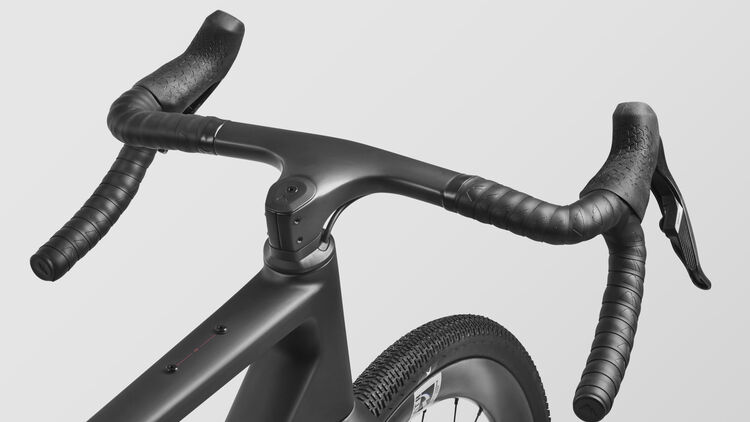

• Cockpit
  • Canyon Cockpit CP0045
  • One-piece carbon cockpit with specialist gravel ergonomics and design. 16° flare on at drops, 5° backsweep on tops.
  • Material: Carbon (CF)
  • Weight: 0.71 lbs
• Handlebar Tape
  • Canyon Ergospeed Gel
  • Grippy, durable bar tape with a premium, high-quality, comfortable feel.
  • Color: black

Seat

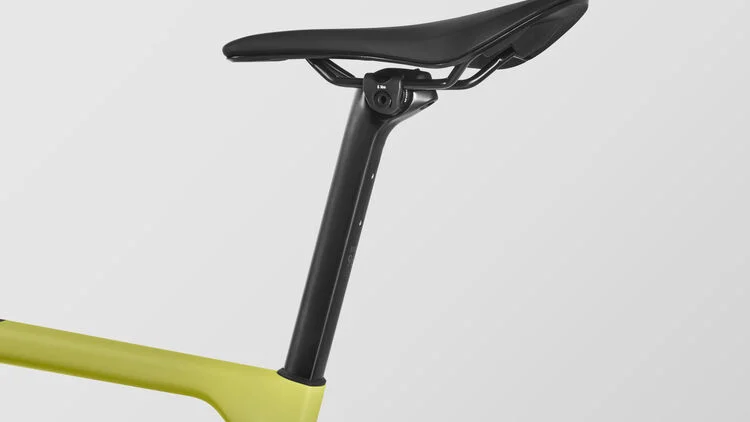

• Saddle
  • Vento Argo X5
  • Width: 140 mm
  • Gender: Unisex
  • Weight: 0.54 lbs

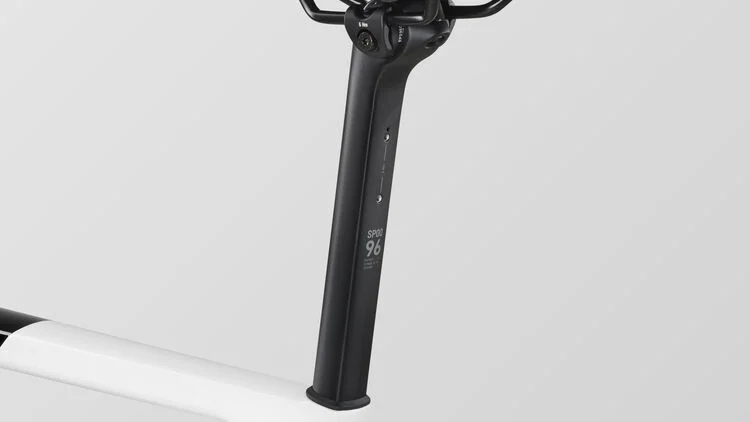

• Seatpost
  • Canyon SP0096-01
  • Setback: 10 mm
  • Material: Carbon (CF)
  • Weight: 0.38 lbs
• Seat Clamp
  • Canyon EP2353-01
