Ultimate CF SLX 8 Di2

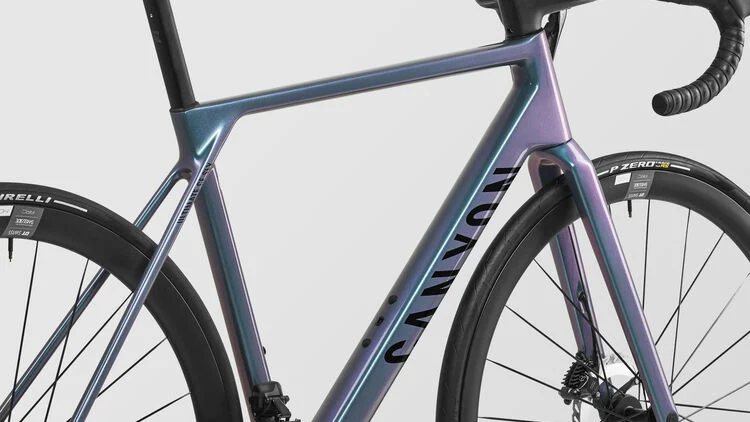

Frame

• Frame
  • Canyon Ultimate CF SLX
  • Our latest 5th-generation Ultimate frame.
  • Axle dimension: 12x142 mm
  • Tyre clearance: 33 mm
  • Material: Carbon (CF)
  • Weight: 1.95 lbs
• Fork
  • Canyon FK0146 CF Disc
  • Axle dimension: 12x100 mm
  • Fork steer tube diameter: 1 1/4"
  • Tyre clearance: 33 mm
  • Material: Carbon (CF)
  • Weight: 0.81 lbs

Drivetrain

• Battery
  • Shimano BT-DN300 Di2 Battery
• Rear Derailleur
  • Shimano Ultegra Di2 RD-R8150 12s
  • Weight: 0.57 lbs
• Front Derailleur
  • Shimano Ultegra Di2 FD-R8150
  • Weight: 0.24 lbs
• Cassette
  • Shimano Ultegra CS-R8100
  • Number of sprockets: 12
  • Range: 11-34
• Crank
  • Shimano Ultegra R8100 4iiii Precision Powermeter 3+
  • Number of chainrings: 2
• Bottom bracket
  • Shimano Pressfit BB72
  • Bottom bracket standard: PF 86,5
  • Weight: 0.14 lbs
• Chain
  • Shimano CN-M8100 12s

Brakes

• Shift-/ Brake Lever
  • Shimano Ultegra Di2 R8170 12s
  • Number of pistons: 2
  • Weight: 0.81 lbs
• Shift-/ Brake Lever
  • Shimano Ultegra Di2 R8170 12s
  • Number of pistons: 2
  • Weight: 0.81 lbs

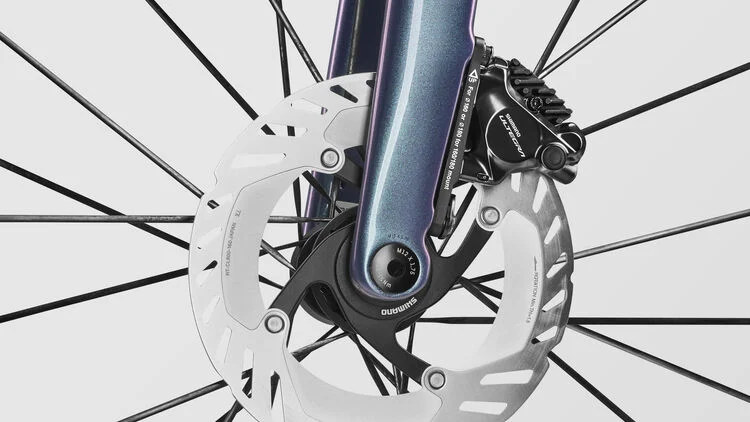

• Brake Rotor
  • Shimano Ultegra RT-CL800
  • Size: 160 mm
  • Weight: 0.25 lbs
• Brake Rotor
  • Shimano Ultegra RT-CL800
  • Size: 140 mm
  • Weight: 0.21 lbs

Wheels

• Wheel
  • DT Swiss ARC 1400 Dicut
  • Axle dimension: 12x100 mm
  • Rotor mount: Center Lock
  • Rim height: 38 mm
  • Inner width: 21 mm
  • Rim material: Carbon
  • Weight: 1.40 lbs
• Wheel
  • DT Swiss ARC 1400 Dicut
  • Axle dimension: 12x142 mm
  • Rotor mount: Center Lock
  • Rim height: 38 mm
  • Inner width: 21 mm
  • Rim material: Carbon
  • Weight: 1.79 lbs
• Tyre
  • Pirelli P Zero Race RS
  • Width: 28 mm
  • Weight: 0.69 lbs
• Thru Axle
  • DT Swiss Through Axle
  • Axle dimension: 12x100 mm
• Thru Axle
  • DT Swiss Through Axle
  • Axle dimension: 12x142 mm

Cockpit

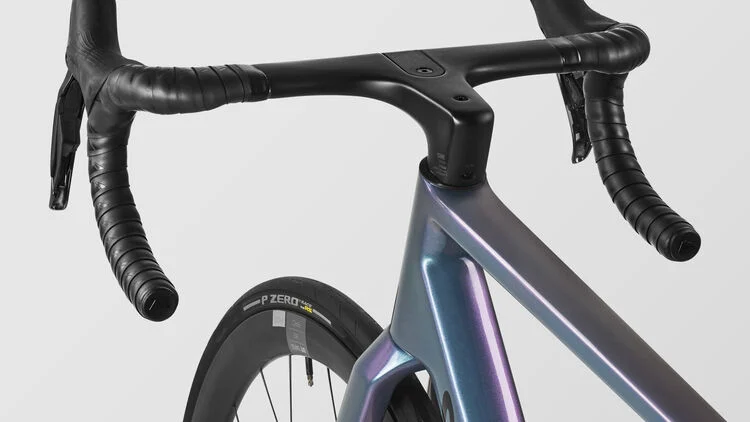

• Cockpit
  • Canyon CP0048 CF
  • Aero carbon cockpit with 40 mm width and 15 mm height adjustment for a total of 12 distinct positions.
  • Material: Carbon (CF)
  • Weight: 0.49 lbs
• Handlebar Tape
  • Canyon Ergospeed Gel
  • Grippy, durable bar tape with a premium, high-quality, comfortable feel.
  • Color: black
