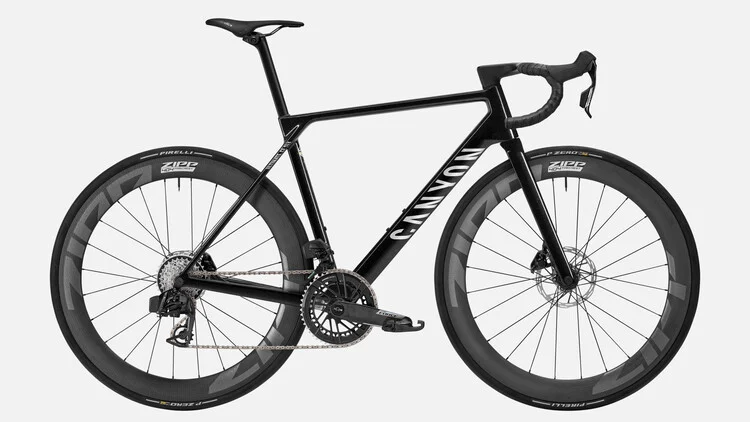

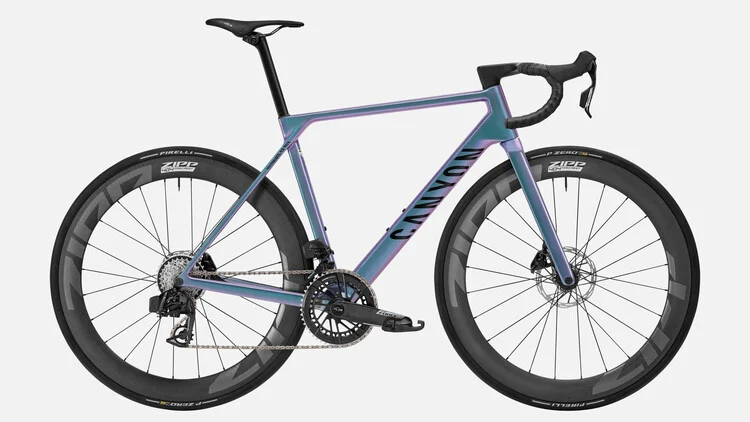

Ultimate CF SLX 8 AXS

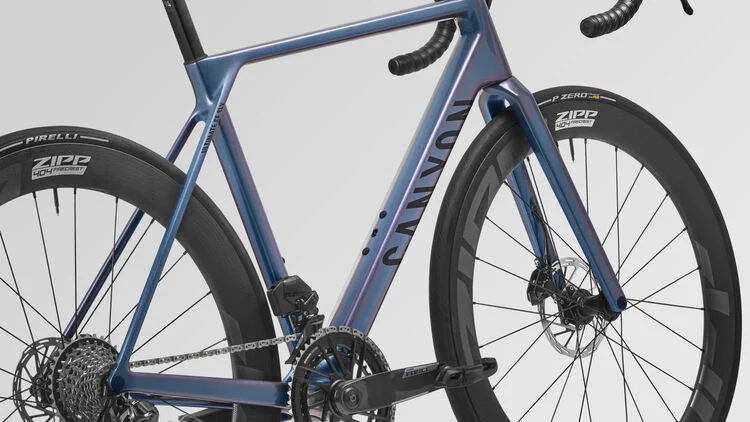

Frame

• Frame
  • Canyon Ultimate CF SLX
  • Our latest 5th-generation Ultimate frame.
  • Axle dimension: 12x142 mm
  • Tyre clearance: 33 mm
  • Material: Carbon (CF)
  • Weight: 1.95 lbs
• Fork
  • Canyon FK0146 CF Disc
  • Axle dimension: 12x100 mm
  • Fork steer tube diameter: 1 1/4"
  • Tyre clearance: 33 mm
  • Material: Carbon (CF)
  • Weight: 0.81 lbs

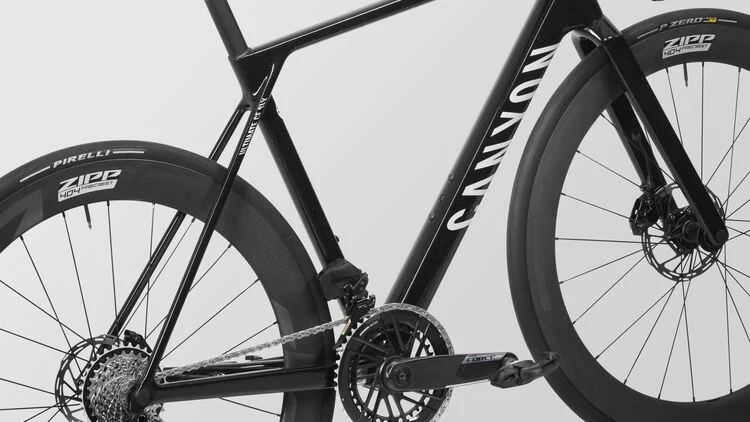

Drivetrain

• Battery
  • SRAM Powerpack
• Rear Derailleur
  • SRAM Force
• Cassette
  • SRAM Force
• Crank
  • SRAM Force AXS E1
  • Number of chainrings: 2
• Bottom bracket
  • SRAM DUB Pressfit
  • Bottom bracket standard: PF 86,5
  • Weight: 0.15 lbs
• Chain
  • SRAM Force E1

Brakes

• Shift-/ Brake Lever
  • SRAM Force Etap AXS E1
• Shift-/ Brake Lever
  • SRAM Force AXS E1
  • Number of pistons: 2

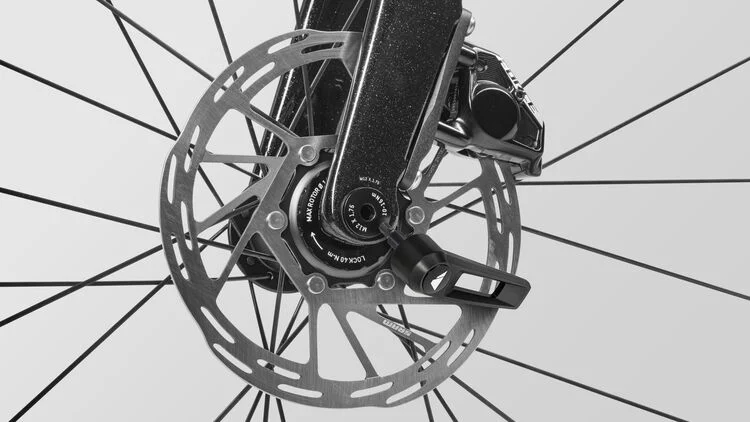

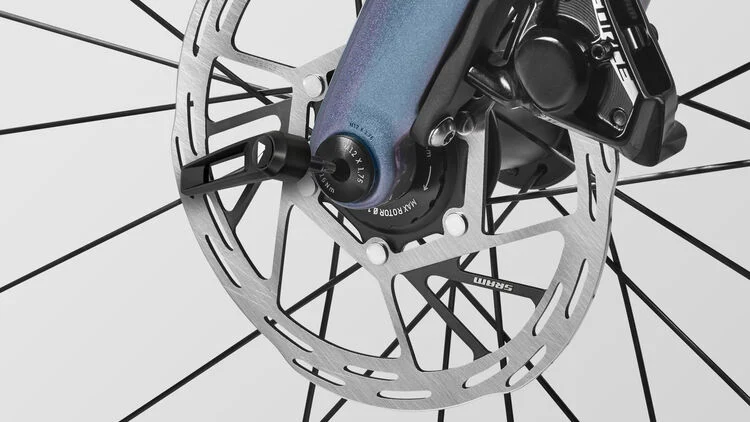

• Brake Rotor
  • SRAM Paceline
  • Size: 140 mm
  • Weight: 0.35 lbs
• Brake Rotor
  • SRAM Paceline
  • Size: 160 mm
  • Weight: 0.35 lbs

Wheels

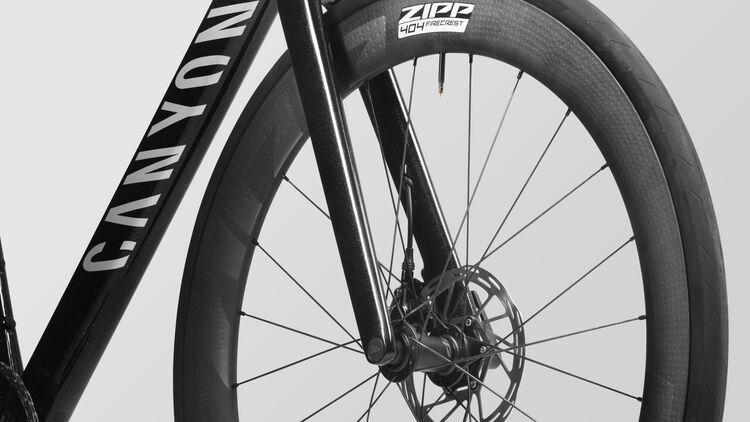

• Wheel

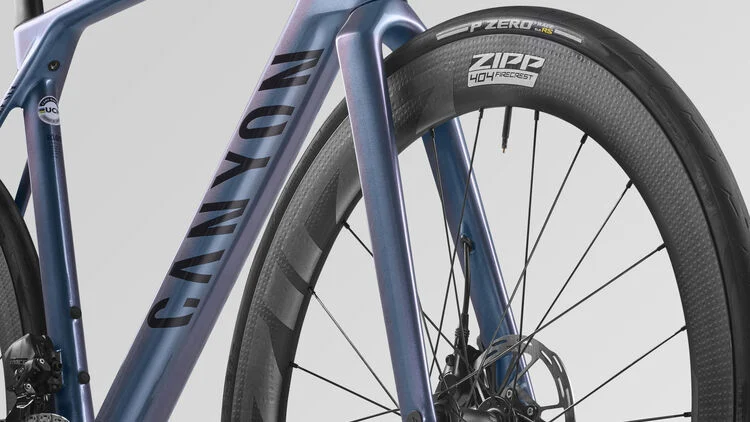

  • Zipp 404 Firecrest Hookless
  • Axle dimension: 12x100 mm
  • Rotor mount: Center Lock
  • Rim height: 58 mm
  • Inner width: 23 mm
  • Rim material: Carbon
  • Weight: 1.46 lbs
• Wheel
  • Zipp 404 Firecrest Hookless
  • Axle dimension: 12x142 mm
  • Rotor mount: Center Lock
  • Rim height: 58 mm
  • Inner width: 23 mm
  • Rim material: Carbon
  • Weight: 1.74 lbs
• Tyre
  • Pirelli P Zero Race RS
  • Width: 28 mm
  • Weight: 0.69 lbs
• Thru Axle
  • DT Swiss Through Axle
  • Axle dimension: 12x142 mm
• Thru Axle
  • DT Swiss Through Axle
  • Axle dimension: 12x100 mm

Cockpit

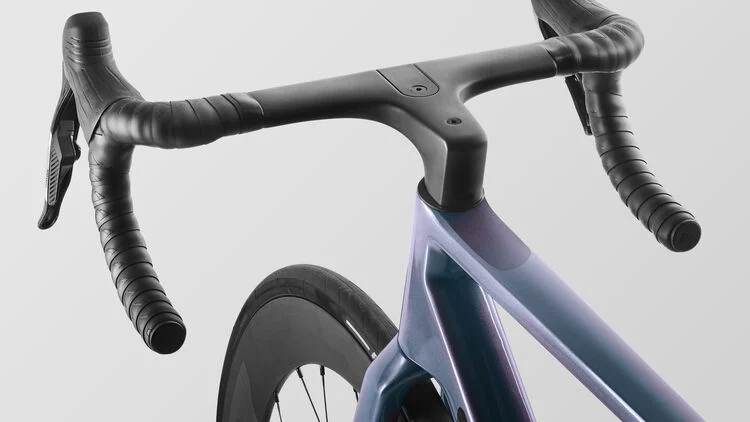

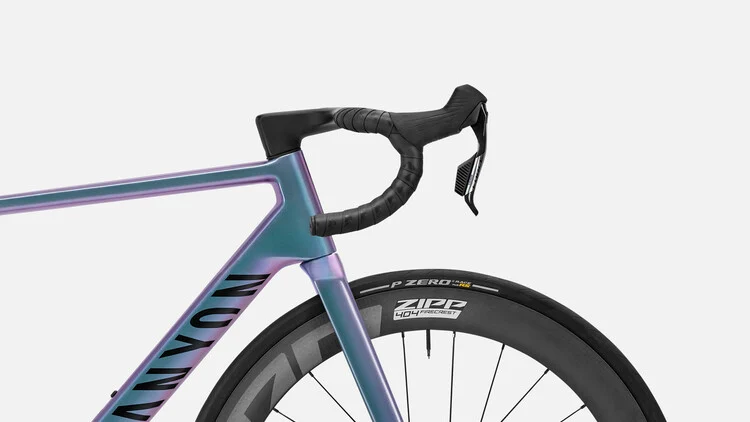

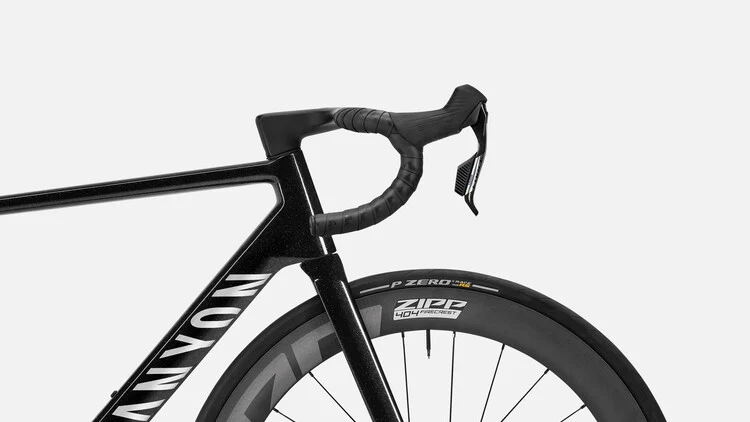

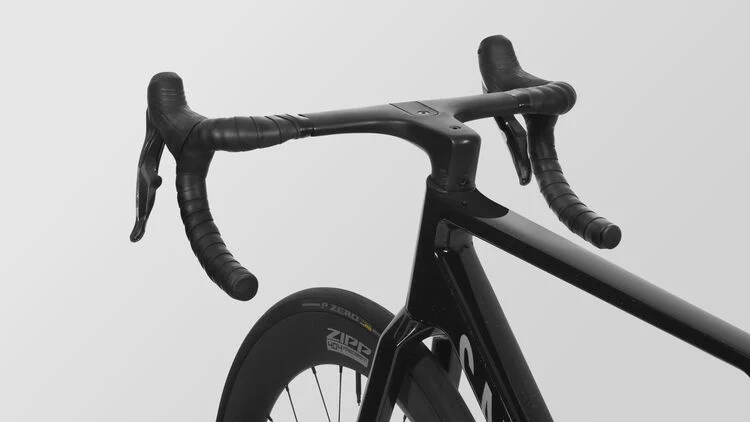

• Cockpit
  • Canyon CP0048 CF
  • Aero carbon cockpit with 40 mm width and 15 mm height adjustment for a total of 12 distinct positions.
  • Material: Carbon (CF)
  • Weight: 0.49 lbs
• Handlebar Tape
  • Canyon Ergospeed Gel
  • Grippy, durable bar tape with a premium, high-quality, comfortable feel.
  • Color: black

Seat

• Saddle
  • Selle Italia SLR Boost Superflow S saddle
  • Width: 130 mm
  • Gender: Unisex
  • Max. Rider Weight: 100 kg
  • Weight: 0.40 lbs

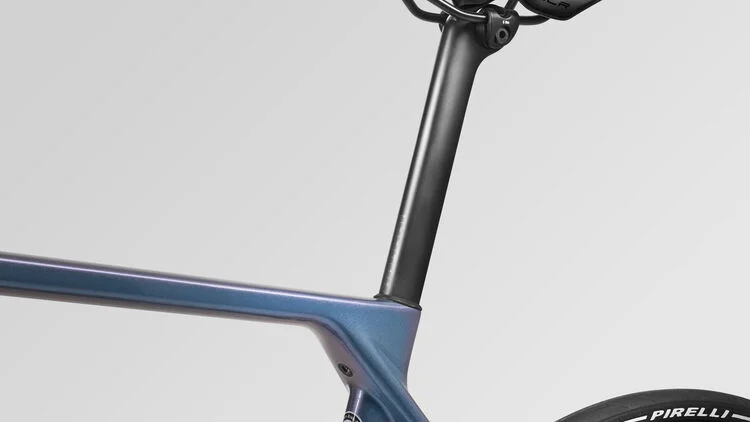

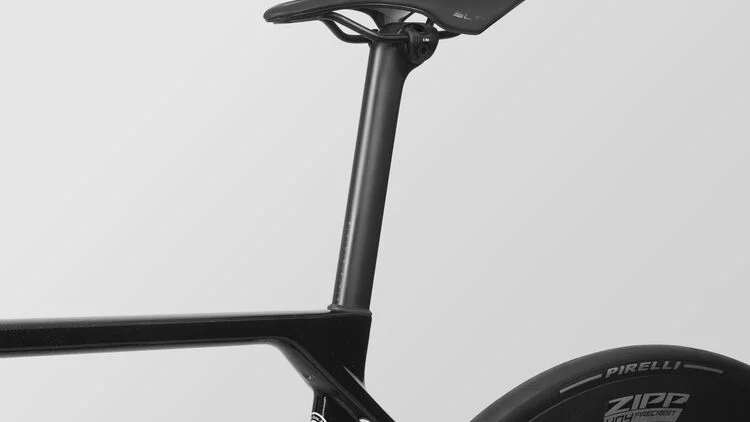

• Seatpost
  • Canyon SP0094 CF
