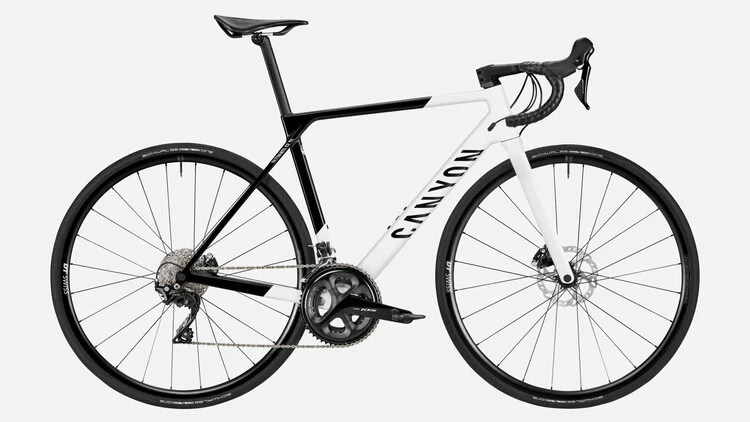

Ultimate CF SL 7

Frame

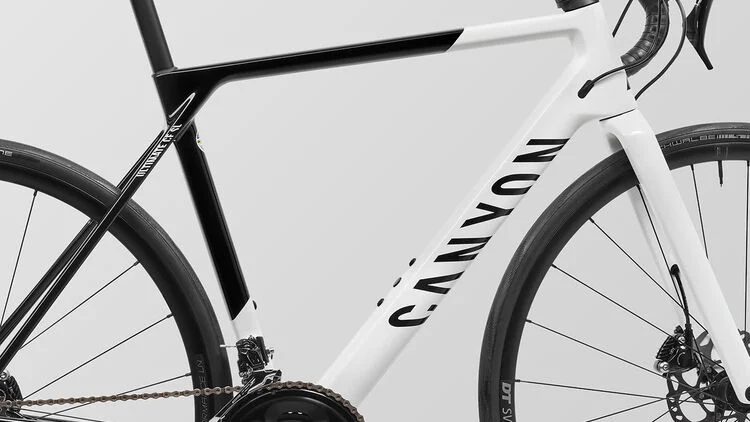

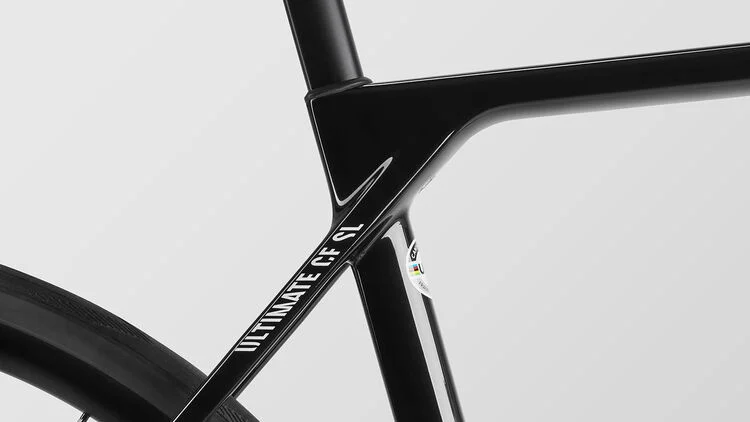

• Frame
  • Canyon Ultimate CF SL
  • Our latest 5th-generation Ultimate frame.
  • Axle dimension: 12x142 mm
  • Tyre clearance: 33 mm
  • Material: Carbon (CF)
  • Weight: 2.32 lbs

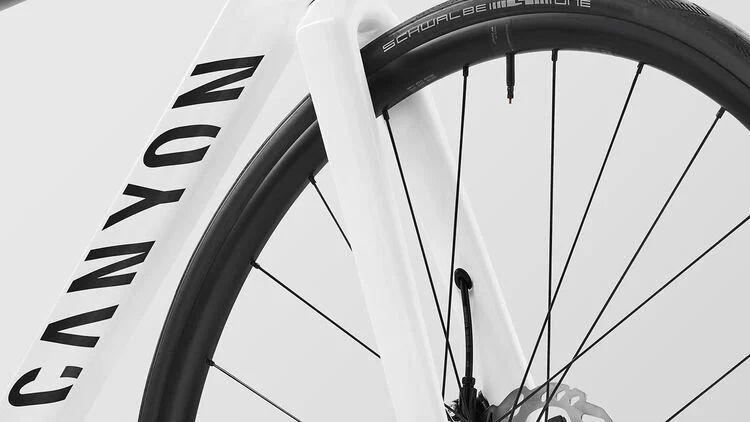

• Fork
  • Canyon FK0105 CF
  • Carbon fork optimised for lightness, stiffness, and strength.
  • Axle dimension: 12x100 mm
  • Fork steer tube diameter: 1 1/4"
  • Tyre clearance: 33 mm
  • Material: Carbon (CF)
  • Weight: 0.90 lbs

Drivetrain

• Rear Derailleur
  • Shimano 105 R7000 GS
  • Weight: 0.56 lbs
• Front Derailleur
  • Shimano 105 R7000
  • Weight: 0.21 lbs
• Cassette
  • Shimano 105 R7000 11-32 11s
  • Number of sprockets: 11
  • Range: 11-32 11S
• Crank
  • Shimano 105 R7000
  • Number of chainrings: 2
• Bottom bracket
  • Token Ninja Lite BB4124
  • Bottom bracket standard: PF 86,5
  • Weight: 0.19 lbs
• Chain
  • Shimano CN-HG701 11s

Brakes

• Shift-/ Brake Lever
  • Shimano 105 R7020, 2-speed
  • Weight: 1.24 lbs
• Shift-/ Brake Lever
  • Shimano 105 R7020, 11-speed
  • Weight: 1.21 lbs
• Brake Rotor
  • Shimano Bremsscheibe
  • Size: 140 mm
  • Weight: 0.30 lbs
• Brake Rotor
  • Shimano SM-RT70
  • Size: 160 mm
  • Weight: 0.32 lbs

Wheels

• Wheel
  • DT Swiss Performance LN
  • Axle dimension: 12x100 mm
  • Rotor mount: Center Lock
  • Rim height: 20 mm
  • Inner width: 20 mm
  • Rim material: Aluminium
  • Weight: 1.85 lbs
• Wheel
  • DT Swiss Performance LN HG
  • Axle dimension: 12x142 mm
  • Rotor mount: Center Lock
  • Rim height: 20 mm
  • Inner width: 20 mm
  • Rim material: Aluminium
  • Weight: 2.17 lbs
• Tyre
  • Schwalbe One Tire 28mm
  • Width: 28 mm
  • Weight: 0.79 lbs
• Thru Axle
  • Canyon Thru Axle
  • Axle dimension: 12x100 mm
• Thru Axle
  • Canyon Thru Axle
  • Axle dimension: 12x142 mm

Cockpit

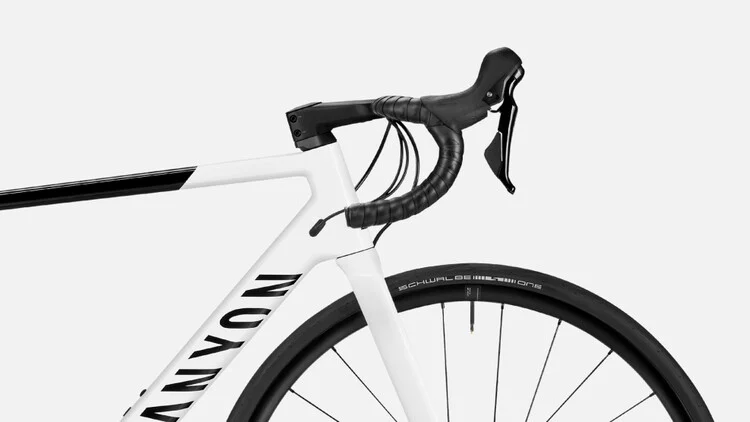

• Cockpit
  • Canyon CP0030 Aerocockpit
  • One-piece carbon cockpit integrating bar and stem into a single sleek unit.
  • Material: carbon
  • Shape: Ergo
  • Reach: 74 mm
  • Drop: 130 mm
• Handlebar Tape
  • Canyon Ergospeed Gel
  • Grippy, durable bar tape with a premium, high-quality, comfortable feel.
  • Color: black

Seat
