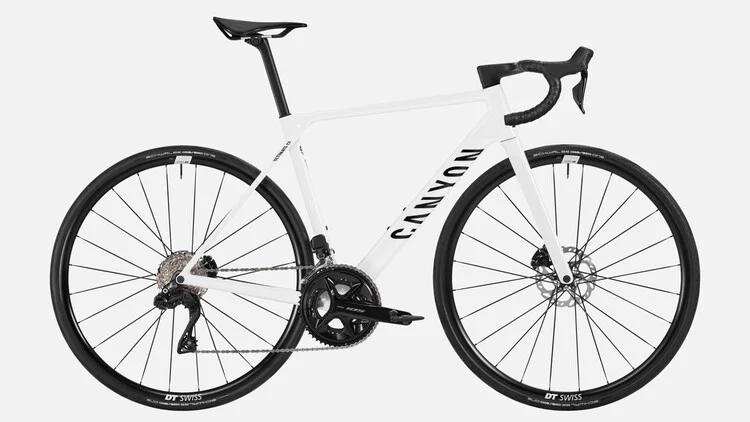

Ultimate CF 7 Di2

Frame

• Frame
  • Canyon Ultimate CF
  • Our latest 5th-generation Ultimate frame.
  • Axle dimension: 12x142 mm
  • Tyre clearance: 33 mm
  • Material: Carbon (CF)
  • Weight: 2.43 lbs
• Fork
  • Canyon FK0146 CF Disc
  • Axle dimension: 12x100 mm
  • Fork steer tube diameter: 1 1/4"
  • Tyre clearance: 33 mm
  • Material: Carbon (CF)
  • Weight: 0.85 lbs

Drivetrain

• Battery
  • Shimano BT-DN300 Di2 Battery
• Rear Derailleur
  • Shimano 105 Di2 RD
  • Weight: 0.66 lbs
• Front Derailleur
  • Shimano 105 Di2 FD-R7150
  • Weight: 0.30 lbs
• Cassette
  • Shimano 105 R7100, 12-speed, 11-34T
  • Number of sprockets: 12
  • Range: 11-34
• Crank
  • Shimano 105 Crankset
  • Number of chainrings: 2
• Bottom bracket
  • Shimano Pressfit BB-RS500
  • Bottom bracket standard: PF 86
  • Weight: 0.18 lbs
• Chain
  • Shimano CN-M7100 12s

Brakes

• Shift-/ Brake Lever
  • Shimano 105 Di2 R7170, 2-speed
  • Number of pistons: 2
  • Weight: 0.86 lbs
• Shift-/ Brake Lever
  • Shimano 105 Di2 R7170, 12-speed
  • Number of pistons: 2
  • Weight: 0.85 lbs
• Brake Rotor
  • Shimano Bremsscheibe
  • Size: 140 mm
  • Weight: 0.30 lbs
• Brake Rotor
  • Shimano SM-RT70
  • Size: 160 mm
  • Weight: 0.32 lbs

Wheels

• Wheel
  • DT Swiss P1800
  • Axle dimension: 12x100 mm
  • Rotor mount: Center Lock
  • Rim height: 23 mm
  • Inner width: 21 mm
  • Rim material: Aluminium
  • Weight: 1.76 lbs
• Wheel
  • DT Swiss P1800
  • Axle dimension: 12x142 mm
  • Rotor mount: Center Lock
  • Rim height: 23 mm
  • Inner width: 21 mm
  • Rim material: Aluminium
  • Weight: 2.10 lbs
• Tyre
  • Schwalbe One Tire 28mm
  • Width: 28 mm
  • Weight: 0.79 lbs
• Thru Axle
  • Canyon Thru Axle
  • Axle dimension: 12x100 mm
• Thru Axle
  • Canyon Thru Axle
  • Axle dimension: 12x142 mm

Cockpit

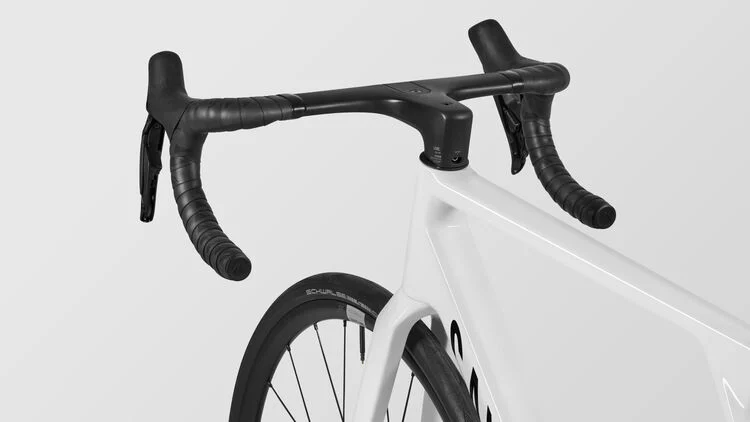

• Cockpit
  • CP0048 100 mm
  • One-piece carbon cockpit with interchangeable drops, and 20 mm height and 50 mm width adjustment with no cutting required.
  • Material: Carbon (CF)
  • Weight: 0.49 lbs
• Handlebar Tape
  • Canyon Ergospeed Gel
  • Grippy, durable bar tape with a premium, high-quality, comfortable feel.
  • Color: black
