Speedmax CFR Di2 Vanquish Pro

Frame

• Frame
  • Canyon Speedmax CFR Disc

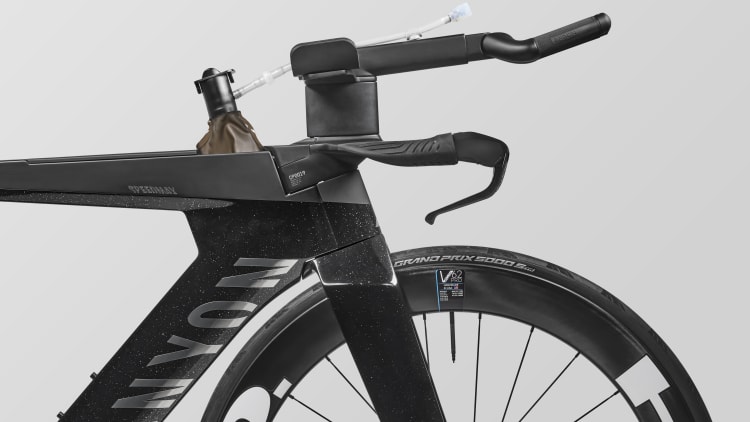

  • Canyon Factory Racing triathlon carbon frame, featuring ultra-rare Toray M40X carbon fibres. Shaped by extensive computational fluid dynamics analysis with our aero partners Swiss Side, validated in the wind tunnel. Fully internal routing, integrated hydration system, hidden toolbox, easily accessible bento box, 12x142 mm through axle, flat-mount disc standard.
  • Axle dimension: 12x142 mm
  • Tyre clearance: 30 mm
  • Material: Carbon (CFR)
  • Weight: 3.53 lbs
• Fork
  • Canyon FK0080
  • Radical deep profile design, covered brake calipers for enhanced aerodynamics, internal cable routing, 12x100 mm through axle, flat-mount disc standard. CT scanner tested and approved.
  • Axle dimension: 12x100 mm
  • Fork steer tube diameter: 1 1/8"
  • Tyre clearance: 30 mm
  • Material: Carbon (CF)
  • Weight: 1.46 lbs

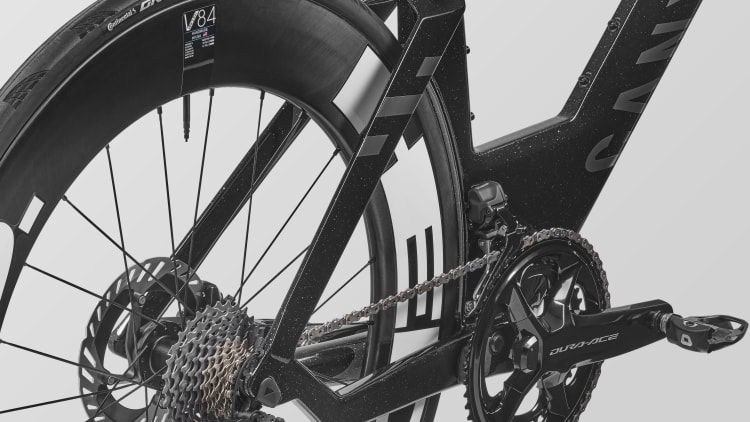

Drivetrain

• Battery
  • Shimano BT-DN300 Di2 Battery
• Rear Derailleur
  • Shimano Dura-Ace Di2 RD-R9250, 12-speed
  • Cage length: long
  • Weight: 0.48 lbs
• Front Derailleur
  • Shimano Dura-Ace Di2 FD-R9250
  • Weight: 0.21 lbs
• Shift Lever
  • Shimano Dura-Ace Di2 R9160 Remote TT
  • Weight: 0.04 lbs
• Cassette
  • Shimano Dura-Ace CS-R9200
  • Number of sprockets: 12
  • Range: 11-30
• Crank
  • Shimano Dura-Ace R9200
  • Number of chainrings: 2
• Bottom bracket
  • Shimano Pressfit BB92
  • Bottom bracket standard: PF 86,5
  • Weight: 0.12 lbs
• Chain
  • Shimano XTR

Brakes

• Brake
  • Shimano Flat Mount Adapter +20mm
• Shift-/ Brake Lever
  • Shimano Dura-Ace Di2 ST-R9180
  • Number of pistons: 2
  • Weight: 0.58 lbs
• Shift-/ Brake Lever
  • Shimano Dura-Ace Di2 ST-R9180
  • Number of pistons: 2
  • Weight: 0.58 lbs
• Brake Rotor
  • Shimano Dura-Ace RT-CL900
  • Size: 160 mm
  • Weight: 0.25 lbs

Wheels

• Wheel
  • HED Vanquish V62 Pro
  • Axle dimension: 12x100 mm
  • Rotor mount: Center Lock
• Wheel
  • HED Vanquish V62 Pro
  • Axle dimension: 12x142 mm
  • Rotor mount: Center Lock
• Tyre
  • Continental Grand Prix 5000 S TR, 25mm
  • Width: 25 mm
  • Weight: 0.54 lbs
• Tyre
  • Continental Grand Prix 5000 S TR, 28mm
  • Width: 28 mm
  • Weight: 0.65 lbs
• Thru Axle
  • DT Swiss through axle with Lever
  • Axle dimension: 12x100 mm
• Thru Axle
  • DT Swiss Through Axle
  • Axle dimension: 12x142 mm

Cockpit

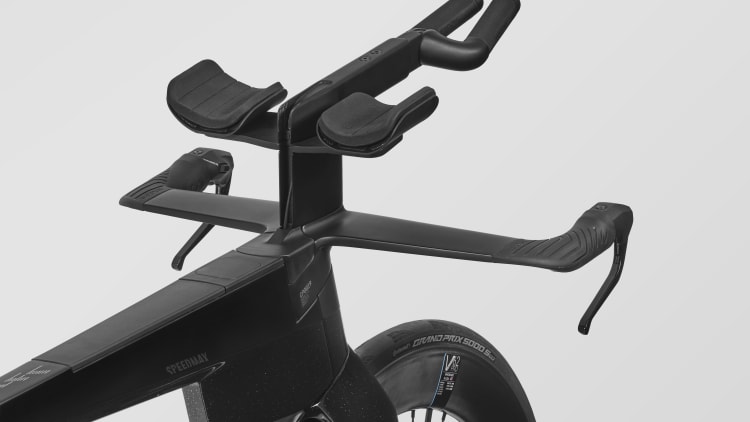

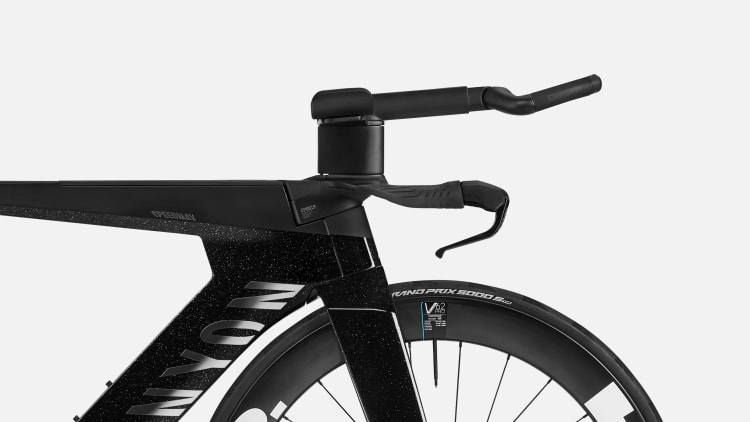

• Cockpit
  • Canyon CP0019 Triathlon Flatbar short
  • Aerodynamically optimised triathlon cockpit with adjustable height, width, reach, and grip. Ergonomically optimised for maximum control at high speeds in a compact riding position.
  • Material: Carbon (CF)
  • Weight: 1.16 lbs
• Aero Bar
  • Canyon GP0226 Aerobar
