Speedmax CF SLX 8 Di2 Vanquish

Frame

• Frame
  • Canyon Speedmax CF SLX Disc

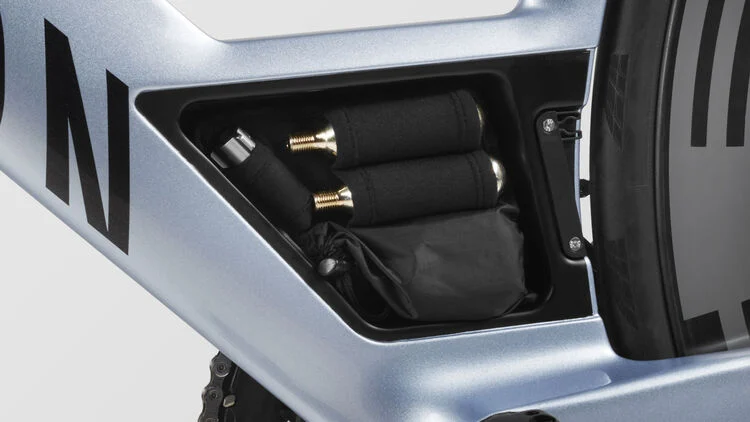

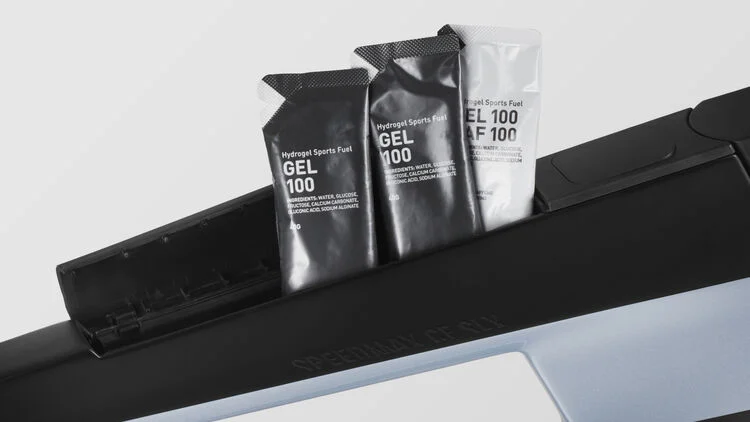

  • All-new Speedmax CF SLX frame shaped by extensive computational fluid dynamics analysis with our aero partners Swiss Side, validated in the wind tunnel. Fully internal routing, integrated hydration system, hidden toolbox, easily accessible bento box, 12x142 mm through axle, flat-mount disc standard.
  • Axle dimension: 12x142 mm
  • Tyre clearance: 30 mm
  • Material: Carbon (CF)
  • Weight: 3.75 lbs
• Fork
  • Canyon FK0080 CF Disc
  • Radical deep profile design, covered brake calipers for enhanced aerodynamics, internal cable routing, 12x100 mm through axle, flat-mount disc standard. CT scanner tested and approved.
  • Axle dimension: 12x100 mm
  • Fork steer tube diameter: 1 1/8"
  • Tyre clearance: 30 mm
  • Material: Carbon (CF)
  • Weight: 1.48 lbs

Drivetrain

• Battery
  • Shimano BT-DN300 Di2 Battery
• Rear Derailleur
  • Shimano Ultegra Di2 groupset
  • Weight: 0.57 lbs
• Front Derailleur
  • Shimano Ultegra Di2 FD-R8150
  • Weight: 0.24 lbs
• Shift Lever
  • Shimano Dura-Ace Di2 R9160 Remote TT
  • Weight: 0.04 lbs
• Cassette
  • Shimano Ultegra R8100,12-speed, 11-30T
  • Number of sprockets: 12
  • Range: 11-30
• Crank
  • Shimano Ultegra FC-R8100 4iiii Precision Powermeter
  • Number of chainrings: 2
• Bottom bracket
  • Shimano Pressfit BB72
  • Bottom bracket standard: PF 86,5
  • Weight: 0.14 lbs
• Chain
  • Shimano CN-M8100 12s

Brakes

• Brake
  • Shimano Flat Mount Adapter +20mm
• Shift-/ Brake Lever
  • Shimano Dura-Ace Di2 ST-R9180
  • Number of pistons: 2
  • Weight: 0.58 lbs
• Shift-/ Brake Lever
  • Shimano Dura-Ace Di2 ST-R9180
  • Number of pistons: 2
  • Weight: 0.58 lbs
• Brake Rotor
  • Shimano Ultegra RT-CL800
  • Size: 160 mm
  • Weight: 0.25 lbs

Wheels

• Wheel
  • HED Vanquish V62 Pro
  • Axle dimension: 12x100 mm
  • Rotor mount: Center Lock
• Wheel
  • HED Vanquish V62 Pro
  • Axle dimension: 12x142 mm
  • Rotor mount: Center Lock
• Tyre
  • Continental Grand Prix 5000 S TR, 25mm
  • Width: 25 mm
  • Weight: 0.54 lbs
• Tyre
  • Continental Grand Prix 5000 S TR, 28mm
  • Width: 28 mm
  • Weight: 0.65 lbs
• Thru Axle
  • DT Swiss through axle with Lever
  • Axle dimension: 12x100 mm
• Thru Axle
  • DT Swiss Through Axle
  • Axle dimension: 12x142 mm

Cockpit

• Cockpit

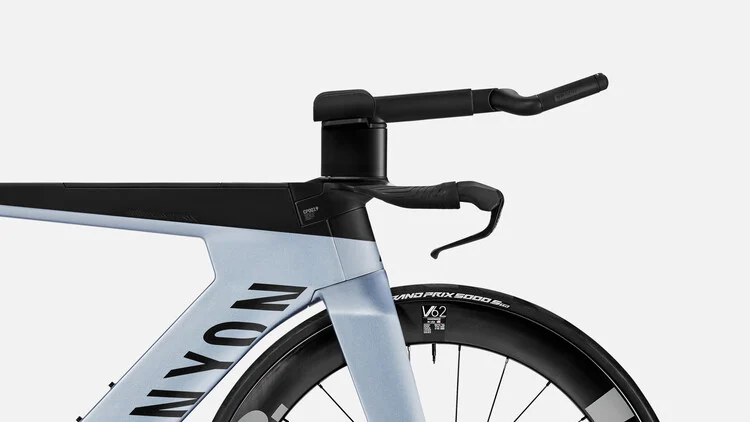

  • Canyon CP0019 Triathlon Flatbar short
  • Aerodynamically optimised triathlon cockpit with adjustable height, width, reach, and grip. Ergonomically optimised for maximum control at high speeds in a compact riding position.
  • Material: Carbon (CF)
  • Weight: 1.16 lbs
• Aero Bar

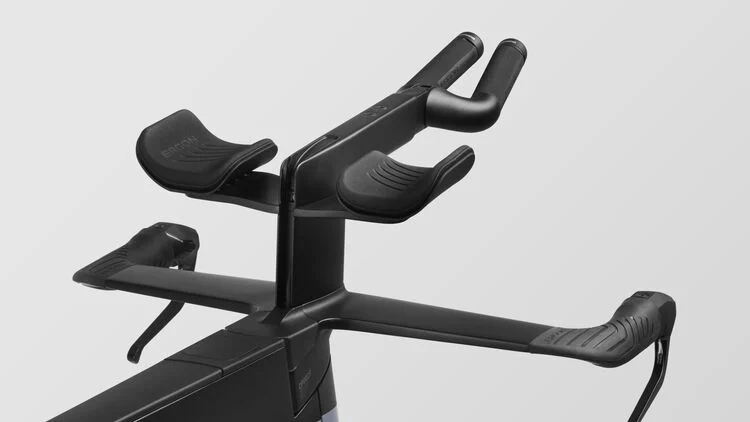

  • Canyon GP0226 Aerobar
  • Mono aero bar developed with aero experts Swiss Side to deliver optimal aero performance.
