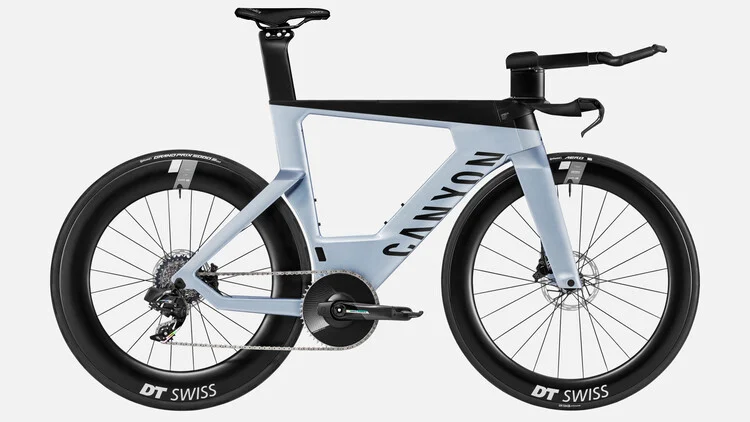

Speedmax CF SLX 8 AXS

Frame

• Frame
  • Canyon Speedmax CF SLX Disc

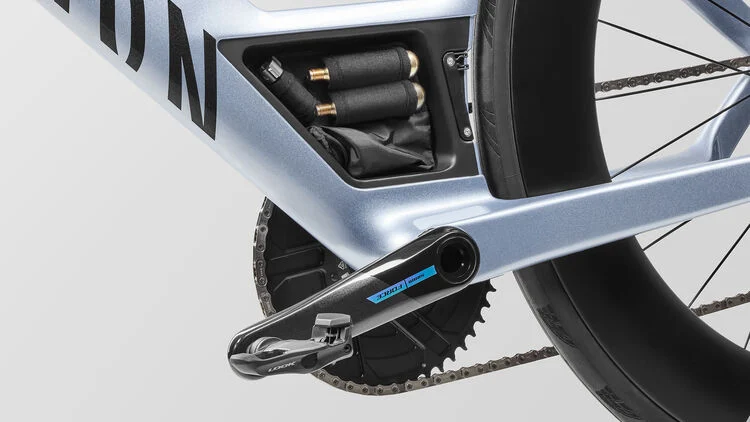

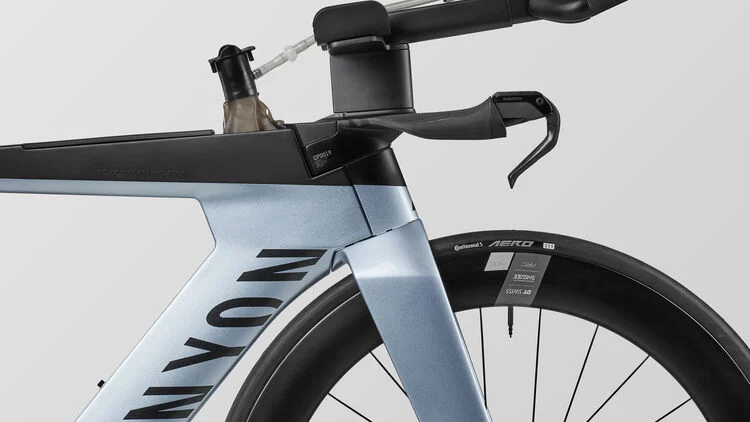

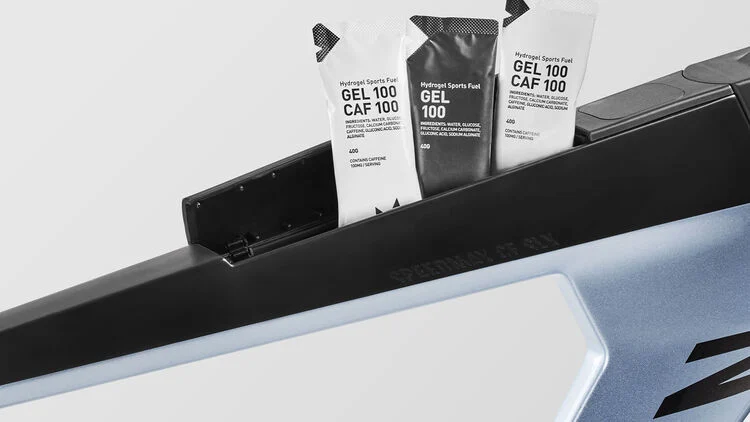

  • All-new Speedmax CF SLX frame shaped by extensive computational fluid dynamics analysis with our aero partners Swiss Side, validated in the wind tunnel. Fully internal routing, integrated hydration system, hidden toolbox, easily accessible bento box, 12x142 mm through axle, flat-mount disc standard.
  • Axle dimension: 12x142 mm
  • Tyre clearance: 30 mm
  • Material: Carbon (CF)
  • Weight: 3.75 lbs
• Fork
  • Canyon FK0080 CF Disc
  • Radical deep profile design, covered brake calipers for enhanced aerodynamics, internal cable routing, 12x100 mm through axle, flat-mount disc standard. CT scanner tested and approved.
  • Axle dimension: 12x100 mm
  • Fork steer tube diameter: 1 1/8"
  • Tyre clearance: 30 mm
  • Material: Carbon (CF)
  • Weight: 1.48 lbs

Drivetrain

• Battery
  • SRAM Powerpack
• Rear Derailleur
  • SRAM Force AXS RD 12s
  • Weight: 0.67 lbs
• Shift Lever
  • SL SRAM BLIP AXS WLS MOUNT TAPE
  • Weight: 1.15 lbs
• Cassette
  • SRAM Force XG-1270 12s 10-33T
  • Number of sprockets: 12
  • Range: 10-33
• Crank
  • SRAM Force AXS Power Meter
  • Number of chainrings: 1
• Bottom bracket
  • SRAM DUB Pressfit
  • Bottom bracket standard: PF 86,5
  • Weight: 0.15 lbs
• Chain
  • SRAM Force D1 12s

Brakes

• Shift-/ Brake Lever
  • SRAM S-900 Aero HRD
  • Weight: 0.62 lbs
• Shift-/ Brake Lever
  • SRAM S-900 Aero HRD
  • Weight: 0.60 lbs
• Brake Rotor
  • SRAM Paceline
  • Size: 160 mm
  • Weight: 0.35 lbs

Wheels

• Wheel
  • DT Swiss ARC 1400 Dicut
  • Axle dimension: 12x100 mm
  • Rotor mount: Center Lock
  • Rim height: 62 mm
  • Inner width: 20 mm
  • Rim material: Carbon
  • Weight: 1.76 lbs
• Wheel
  • DT Swiss ARC 1400 Dicut, XDR
  • Axle dimension: 12x142 mm
  • Rotor mount: Center Lock
  • Rim height: 80 mm
  • Rim material: Carbon
  • Weight: 2.19 lbs
• Tyre
  • Continental Grand Prix 5000 S TR, 28mm
  • Width: 28 mm
  • Weight: 0.65 lbs
• Tyre
  • Continental Aero 111
  • Width: 26 mm
  • Weight: 0.54 lbs
• Thru Axle
  • DT Swiss through axle with Lever
  • Axle dimension: 12x100 mm
• Thru Axle
  • DT Swiss Through Axle
  • Axle dimension: 12x142 mm

Cockpit

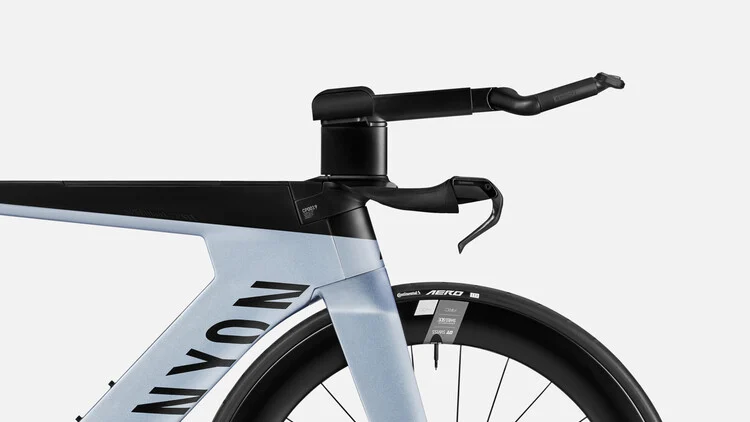

• Cockpit
  • Canyon CP0019 Triathlon Flatbar short
  • New triathlon aero cockpit with egonomically optimised grips for maximum control at high speeds and a compact seating position.
  • Cockpit type: Flat
  • Stem Length: 65 mm
  • Basebar Rise: 0 mm

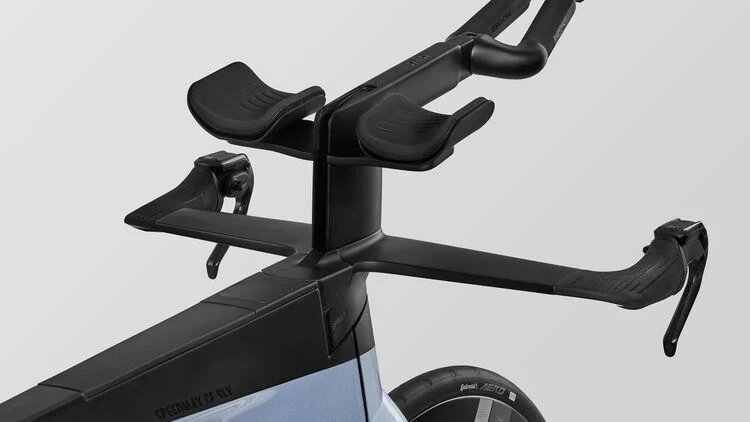

• Aero Bar
  • Canyon GP0226 Aerobar
  • Mono aero bar developed with aero experts Swiss Side to deliver optimal aero performance.
