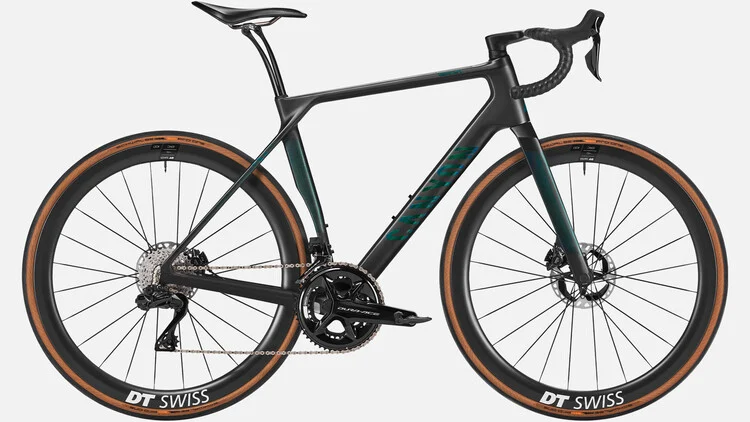

Endurace CFR Di2

Frame

• Frame
  • Canyon Endurace CFR

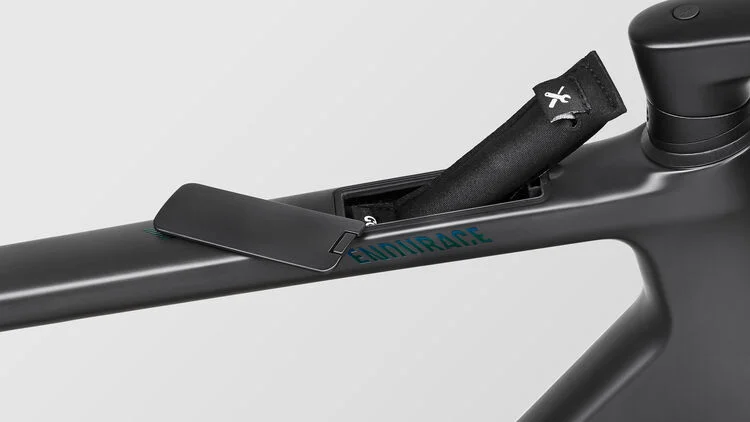

  • Canyon’s fastest, lightest endurance road bike, crafted using the highest grades of carbon to deliver class-leading stiffness-to-weight values. With integrated storage solutions and aero-optimised tube forms.
  • Axle dimension: 12x142 mm
  • Tyre clearance: 35 mm
  • Material: Carbon (CFR)
  • Weight: 2.48 lbs
• Fork
  • Canyon FK0128 CF Disc
  • Lightweight carbon fork with comfortable, vibration-damping design.
  • Axle dimension: 12x100 mm
  • Tyre clearance: 35 mm
  • Material: Carbon (CF)
  • Weight: 2.16 lbs

Drivetrain

• Battery
  • Shimano BT-DN300 Di2 Battery
• Rear Derailleur
  • Shimano Dura-Ace Di2 RD-R9250, 12-speed
  • Cage length: long
  • Weight: 0.48 lbs
• Front Derailleur
  • Shimano Dura-Ace Di2 FD-R9250
  • Weight: 0.21 lbs
• Cassette
  • Shimano Dura-Ace R9200, 12-speed, 11-34
  • Number of sprockets: 12
  • Range: 11-34
• Crank
  • Shimano Dura-Ace Di2 R9200 Powermeter
  • Number of chainrings: 2
• Bottom bracket
  • Shimano Pressfit BB92
  • Bottom bracket standard: PF 86,5
  • Weight: 0.12 lbs
• Chain
  • Shimano XTR

Brakes

• Brake
  • Shimano Flat Mount Adapter +20mm
• Shift-/ Brake Lever
  • Shimano Dura-Ace Di2 R9270, 12-speed
  • Number of pistons: 2
  • Weight: 0.73 lbs
• Shift-/ Brake Lever
  • Shimano Dura-Ace Di2 R9270, 12-speed
  • Number of pistons: 2
  • Weight: 0.73 lbs
• Brake Rotor
  • Shimano XTR RT-MT900
  • Size: 160 mm
  • Weight: 0.23 lbs

Wheels

• Wheel
  • DT Swiss ERC 1100 Dicut
  • Axle dimension: 12x100 mm
  • Rotor mount: Center Lock
  • Rim height: 45 mm
  • Inner width: 22 mm
  • Rim material: Carbon
  • Weight: 1.46 lbs
• Wheel
  • DT Swiss ERC 1100 Dicut
  • Axle dimension: 12x142 mm
  • Rotor mount: Center Lock
  • Rim height: 45 mm
  • Inner width: 22 mm
  • Rim material: Carbon
  • Weight: 1.73 lbs
• Tyre
  • Schwalbe Pro One TLE, 30mm
  • High-end road tyre that combines suppleness, speed, and control at the highest level.
  • Tech: tubeless-ready, v-guard puncture protection
  • Compound: Addix Race
  • On certain models, this tire may be substituted for an alternate, equivalent Schwalbe model.
  • Potentially affected models include:
  • Endurace CF SLX 9 Di2 (Model #3369)
• Tyre
  • Schwalbe Pro One TLE, 32mm
  • On certain models, this tire may be substituted for an alternate, equivalent Schwalbe model.
  • Potentially affected models include:
  • Endurace CF SLX 9 Di2 (Model #3369)
• Thru Axle
  • DT Swiss through axle with Lever
  • Axle dimension: 12x100 mm
• Thru Axle
  • DT Swiss Through Axle
  • Axle dimension: 12x142 mm
