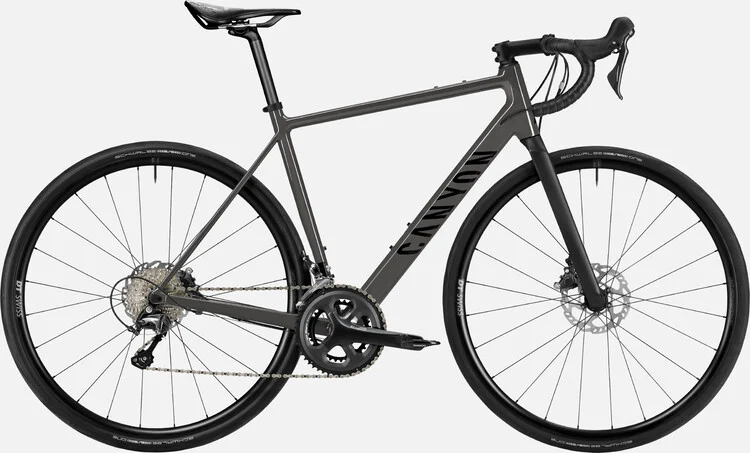

Endurace 6 RAW

Frame

• Frame
  • Canyon Endurace AL Disc
  • Aluminium endurance road bike with proven comfortable-yet-agile Sport Geometry for long-distance riding.
  • Axle dimension: 12x142 mm
  • Tyre clearance: 36 mm
  • Material: Aluminium (AL)
  • Weight: 3.57 lbs

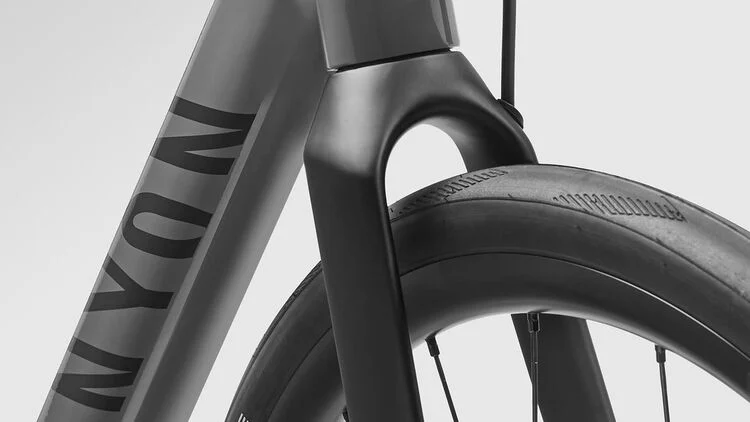

• Fork
  • Canyon FK0089 CF Disc
  • Lightweight carbon fork with comfortable, vibration-damping design.
  • Axle dimension: 12x100 mm
  • Fork steer tube diameter: 1 1/4"
  • Tyre clearance: 36 mm
  • Material: Carbon (CF)
  • Weight: 0.80 lbs

Drivetrain

• Rear Derailleur
  • Shimano Tiagra R4720
  • Cage length: medium
  • Weight: 0.61 lbs
• Front Derailleur
  • Shimano Tiagra 4700
  • Weight: 0.24 lbs
• Cassette
  • Shimano HG500 11-34 10s
  • Number of sprockets: 10
  • Range: 11-34
• Crank
  • Shimano Tiagra 4700
  • Number of chainrings: 2
• Bottom bracket
  • Token Ninja Lite BB4124
  • Bottom bracket standard: PF 86,5
  • Weight: 0.19 lbs
• Chain
  • KMC Connection Link 10s
• Chain
  • KMC X10-93 10s

Brakes

• Shift-/ Brake Lever
  • Shimano Tiagra R4720 2s
  • Number of pistons: 2
  • Weight: 1.08 lbs
• Shift-/ Brake Lever
  • Shimano Tiagra R4720 10s
  • Number of pistons: 2
  • Weight: 1.08 lbs
• Brake Rotor
  • Shimano SM-RT70
  • Size: 160 mm
  • Weight: 0.32 lbs

Wheels

• Wheel
  • DT Swiss Endurance LN
  • Axle dimension: 12x100 mm
  • Rotor mount: Center Lock
  • Rim height: 22 mm
  • Inner width: 22 mm
  • Rim material: Aluminium
  • Weight: 1.99 lbs
• Wheel
  • DT Swiss Endurance LN SH11
  • Axle dimension: 12x142 mm
  • Rotor mount: Center Lock
  • Rim height: 22 mm
  • Inner width: 22 mm
  • Rim material: Aluminium
  • Weight: 2.45 lbs
• Tyre
  • Schwalbe One, 30mm
  • Width: 30 mm
  • Weight: 0.83 lbs
• Tyre
  • Schwalbe One, 32mm
  • Width: 32 mm
  • Weight: 0.90 lbs
• Thru Axle
  • Canyon GP0197-01
  • Axle dimension: 12x100 mm
• Thru Axle
  • Canyon GP0235-01
  • Axle dimension: 12x142 mm

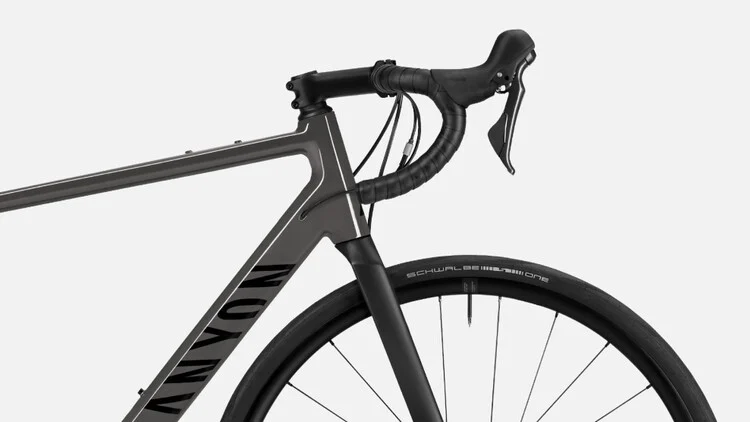

Cockpit

• Stem
  • Canyon ST0035
  • Lightweight, durable aluminium stem.
  • Fork steer tube diameter: 1 1/4"
  • Clamping diameter: 31,8 mm
• Handlebar
  • Canyon H17 Ergobar AL
