Aeroad CFR AXS

Frame

• Frame
  • Canyon Aeroad CFR
  • Fourth-generation Aeroad frame uniting peloton-leading aerodynamics with an improved carbon layup for added robustness.
  • Axle dimension: 12x142 mm
  • Front derailleur hanger: removable
  • Tyre clearance: 32 mm
  • Material: Carbon (CFR)
  • Weight: 2.19 lbs
• Fork
  • Canyon FK0137 CF Disc

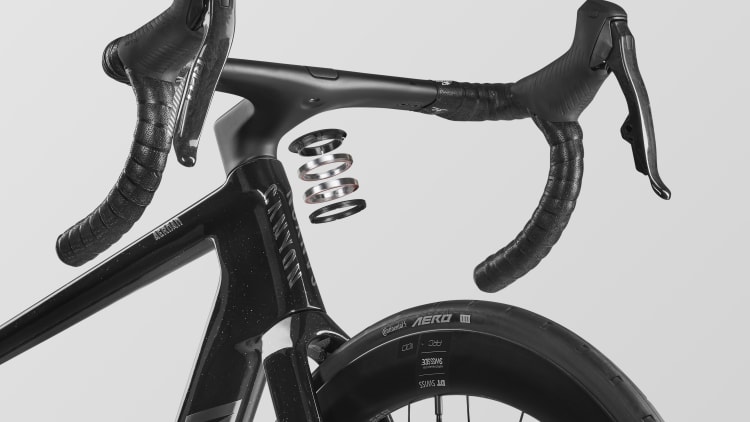

  • Aero fork shaped using advanced CFD technology. With hermetically sealed headset and titanium bearing seat for next-level durability and smoothness.
  • Axle dimension: 12x100 mm
  • Fork steer tube diameter: 1 1/8"
  • Tyre clearance: 32 mm
  • Material: Carbon (CF)
  • Weight: 0.87 lbs

Drivetrain

• Battery
  • SRAM Powerpack
• Rear Derailleur
  • SRAM Red AXS Rear Derailleur
  • Weight: 0.58 lbs
• Front Derailleur
  • SRAM Red
  • Weight: 0.32 lbs
• Cassette
  • SRAM RED XG-1290
  • Number of sprockets: 12
  • Range: 10-28
• Crank
  • SRAM Red
  • Number of chainrings: 2
• Bottom bracket
  • Ceramicspeed Coated BB (SRAM)
  • Bottom bracket standard: PF 86,5
  • Weight: 0.17 lbs
• Chain
  • SRAM RED

Brakes

• Shift-/ Brake Lever
  • SRAM Red
  • Number of pistons: 2
  • Weight: 0.80 lbs
• Shift-/ Brake Lever
  • SRAM Red
  • Number of pistons: 2
  • Weight: 0.80 lbs

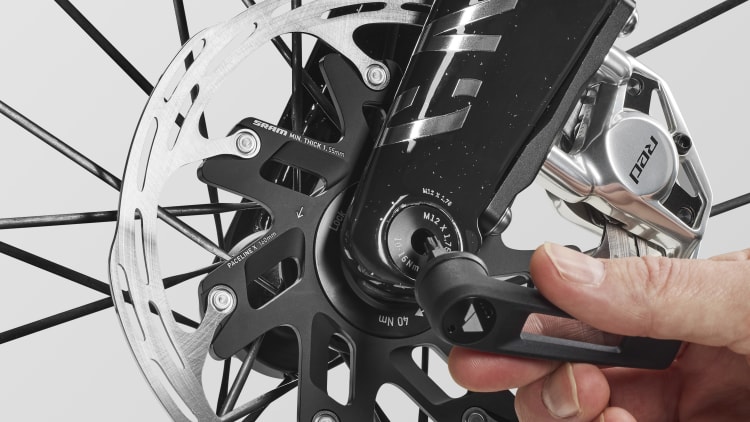

• Brake Rotor
  • SRAM Paceline X
  • Size: 160 mm
  • Weight: 0.30 lbs
• Brake Rotor
  • SRAM Paceline X
  • Size: 140 mm
  • Weight: 0.24 lbs

Wheels

• Wheel
  • DT Swiss ARC 1100 Dicut db
• Wheel
  • DT Swiss ARC 1100 Dicut db
  • Axle dimension: 12x100 mm
  • Rotor mount: Center Lock
  • Rim height: 50 mm
  • Inner width: 20 mm
  • Rim material: Carbon
  • Weight: 1.56 lbs
• Wheel
  • DT Swiss ARC 1100
  • Axle dimension: 12x142 mm
  • Rotor mount: Center Lock
  • Rim height: 50 mm
  • Inner width: 20 mm
  • Rim material: Carbon
  • Weight: 1.88 lbs
• Tyre
  • Continental Aero 111
  • Width: 26 mm
  • Weight: 0.54 lbs
• Tyre
  • Continental Grand Prix 5000 S TR, 28mm
  • Width: 28 mm
  • Weight: 0.65 lbs
• Thru Axle
  • DT Swiss Through Axle
  • Axle dimension: 12x142 mm
• Thru Axle
  • DT Swiss Through Axle
  • Axle dimension: 12x100 mm

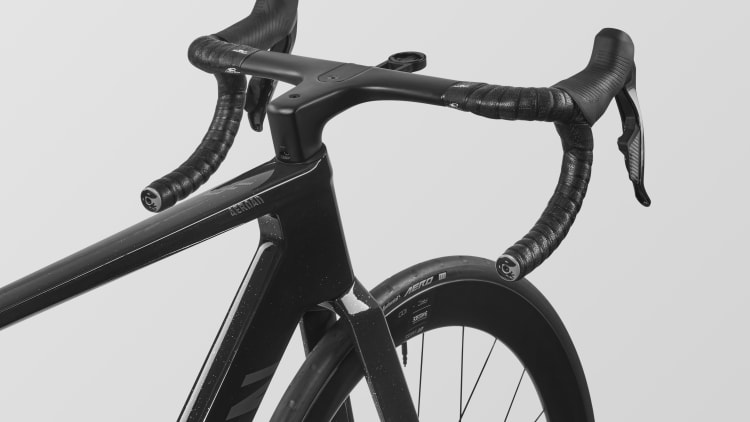

Cockpit

• Cockpit
