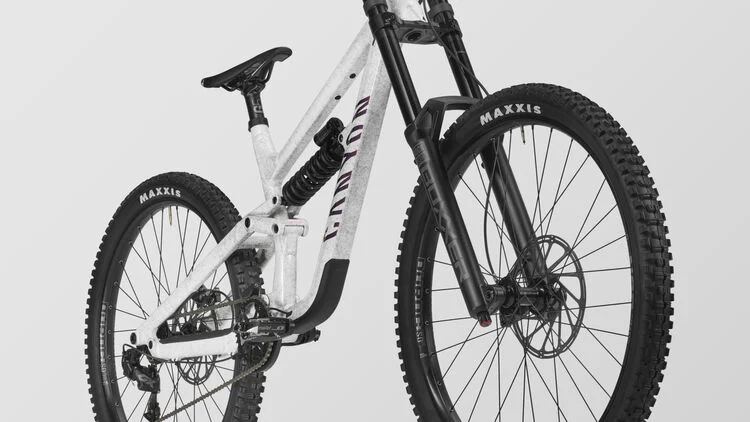

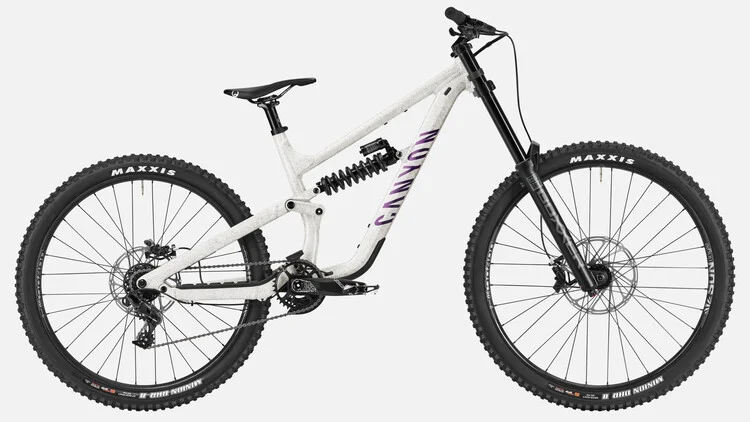

Torque DH CLLCTV

Frame

• Frame
  • Canyon Torque AL
  • A big send, long-travel aluminium freeride frame with progressive, ultra-capable geometry.
  • Axle dimension: 12x148 mm
  • Material: Aluminium (AL)
  • Weight: 3.57 lbs

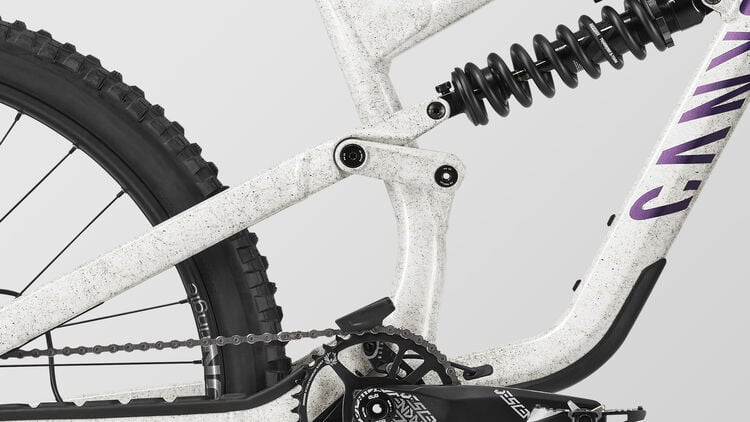

• Rear Shock
  • ROCK SHOX VIVID Coil Select

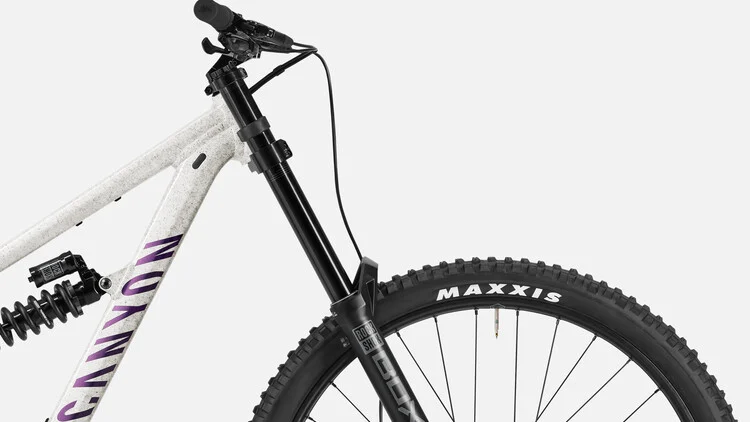

• Suspension Fork
  • RockShox Boxxer Base
  • Axle dimension: 20x110 mm
  • Travel: 190 mm
  • Fork steer tube diameter: 1 1/8"
  • Weight: 6.57 lbs

Drivetrain

• Rear Derailleur
  • SRAM GX DH 7s
  • Cage length: medium
  • Weight: 0.60 lbs
• Chainguard
  • e13 Vario Compact Slider DMB
• Shift Lever
  • SRAM GX DH Trigger 7s
  • Weight: 0.28 lbs
• Cassette
  • SRAM PG-720 DH 11-25 7s
  • Number of sprockets: 7
  • Range: 11-25
• Crank
  • Descendant 6K
  • Number of chainrings: 1
• Bottom bracket
  • SRAM DUB BSA
  • Bottom bracket standard: BSA 73
  • Weight: 0.17 lbs
• Chain
  • SRAM PC 1110 11s

Brakes

• Disc Brake
  • SRAM Code RSC
• Disc Brake
  • SRAM Code RSC
• Brake Rotor
  • SRAM Centerline
  • Size: 200 mm
  • Weight: 0.42 lbs
• Brake Rotor
  • SRAM Centerline
  • Size: 220 mm
  • Weight: 0.49 lbs

Wheels

• Wheel
  • Sun Ringle Duroc SH11
  • Axle dimension: 12x148 mm
  • Rotor mount: IS 6-bolt
  • Rim material: Aluminium
  • Weight: 2.54 lbs
• Wheel
  • Sun Ringle Duroc
  • Axle dimension: 20x110 mm
  • Rotor mount: IS 6-bolt
  • Rim material: Aluminium
  • Weight: 2.34 lbs
• Tyre
  • Maxxis Minion DHR II 2.4"
  • Width: 2.4"
  • Weight: 1.98 lbs
• Tyre
  • Maxxis Minion DHR II 2.4" Wide Trail
  • Width: 2.4"
  • Weight: 2.09 lbs
• Thru Axle
  • Canyon GP0255-01
  • Axle dimension: 12x148 mm

Cockpit

• Stem
  • Canyon G5
  • G5 aluminium stem for double-crown forks. Developed with Canyon downhill pros, proven on the world’s toughest stages. Length: 45 mm.
  • Fork steer tube diameter: 1 1/8"
  • Clamping diameter: 31,8 mm
  • Material: Aluminium (AL)
• Handlebar
  • Canyon G5
  • G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability.
  • Clamping diameter: 31,8 mm
  • Width: 780 mm
  • Rise: 30 mm
• Grips
  • Canyon G5
