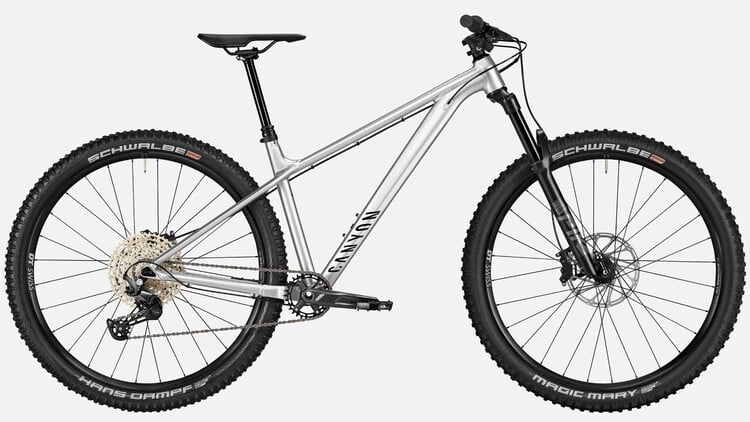

Stoic 4

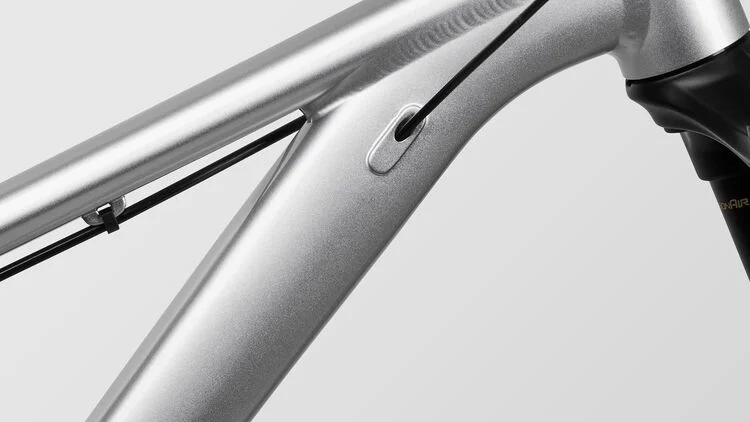

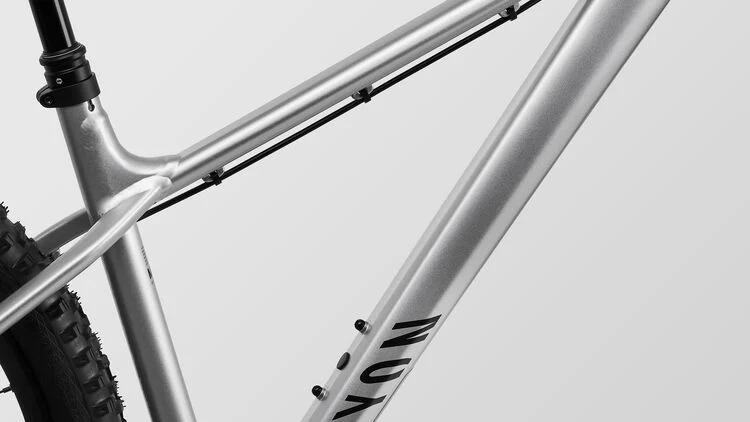

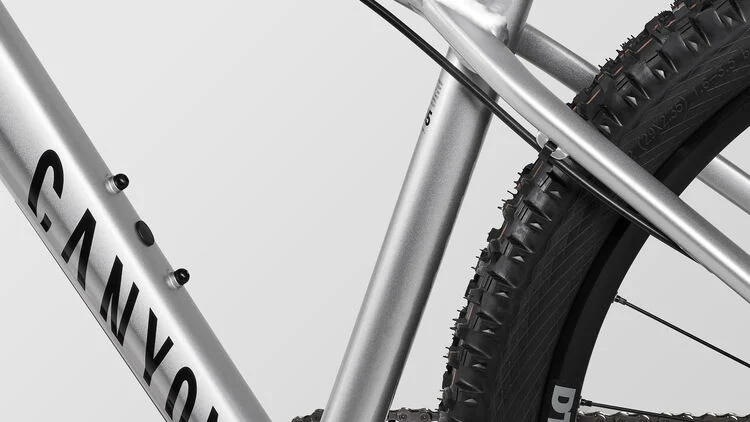

Frame

• Frame
  • Canyon Stoic
  • Hugely capable hardtail trail bike with progressive geometry.
  • Material: Aluminium (AL)
  • Weight: 2.67 lbs

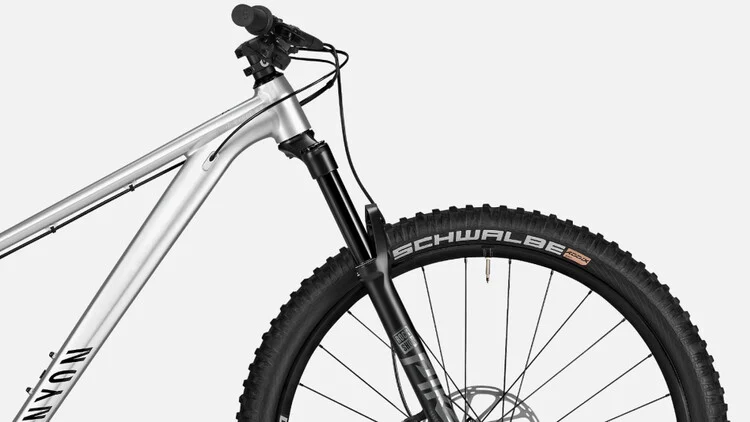

• Suspension Fork
  • ROCKSHOX PIKE SELECT
  • Travel: 140 mm
  • Fork steer tube diameter: 1 1/8" - 1,5"
  • Weight: 5.16 lbs

Drivetrain

• Rear Derailleur
  • Shimano Deore M6100
  • Cage length: long
  • Weight: 0.78 lbs
• Shift Lever
  • Shimano Deore M6100
  • Weight: 0.30 lbs
• Cassette
  • Shimano Deore M6100
  • Number of sprockets: 12
  • Range: 10-51
• Crank
  • Shimano MT511 30T
  • Number of chainrings: 1
• Bottom bracket
  • Shimano BSA BB52
  • Bottom bracket standard: BSA HT2 68/73
  • Weight: 0.22 lbs
• Chain
  • Shimano Deore M6100

Brakes

• Disc Brake
  • SRAM DB8
• Disc Brake
  • SRAM DB8
• Disc Brake
  • SRAM DB8
  • Number of pistons: 4
• Disc Brake
  • SRAM DB8
  • Number of pistons: 4
• Disc Brake
  • SRAM DB8
  • Number of pistons: 4
• Brake Rotor
  • SRAM Centerline Rounded
  • Size: 180 mm
  • Weight: 0.37 lbs
• Brake Rotor
  • SRAM Centerline
  • Size: 200 mm
  • Weight: 0.42 lbs

Wheels

• Wheel
  • DT Swiss AM LN 370
  • Axle dimension: 15x110 mm
  • Rotor mount: IS 6-bolt
  • Weight: 2.31 lbs
• Wheel
  • DT Swiss AM LN 370
  • Axle dimension: 12x148 mm
  • Rotor mount: IS 6-bolt
  • Weight: 2.57 lbs
• Tyre
  • Schwalbe Hans Dampf
  • Width: 60 mm
  • Weight: 2.31 lbs
• Tyre
  • Schwalbe Magic Mary
  • Width: 2.4"
  • Weight: 2.54 lbs
• Thru Axle
  • Canyon GP0225-01

Cockpit

• Stem
  • Canyon G5
  • The Canyon G5 stem (40mm extension) is both incredibly strong and beautifully designed.
  • Fork steer tube diameter: 1 1/8"
• Handlebar
  • Canyon G5
  • G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability.
  • Clamping diameter: 31,8 mm
  • Width: 780 mm
  • Rise: 30 mm
• Grips
  • Canyon G5

Seat

• Saddle
