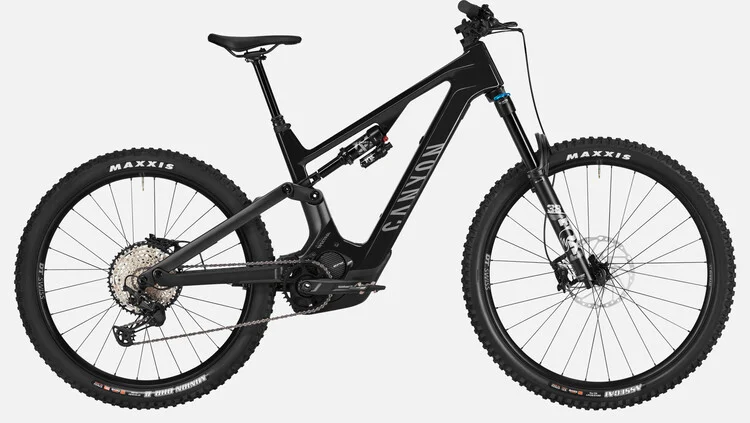

Spectral:ON CF 8

Frame

• Frame
  • Canyon Spectral:ON CF
  • A progressive, playful full-carbon trail e-MTB engineered to eat up more trail in less time.
  • Axle dimension: 12x148 mm
  • Material: Carbon (CF)
  • Weight: 7.93 lbs

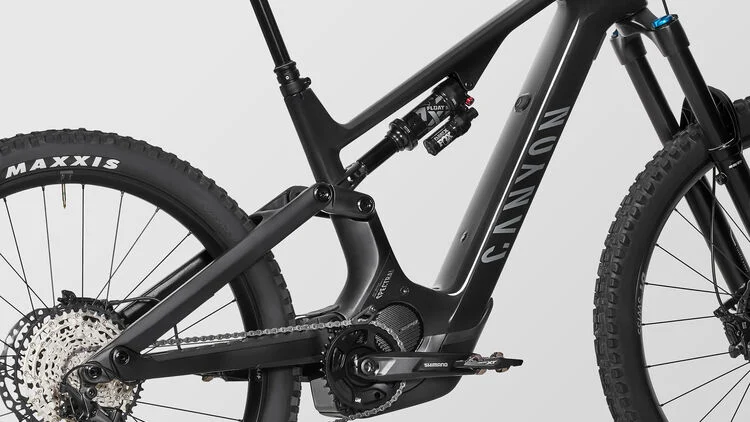

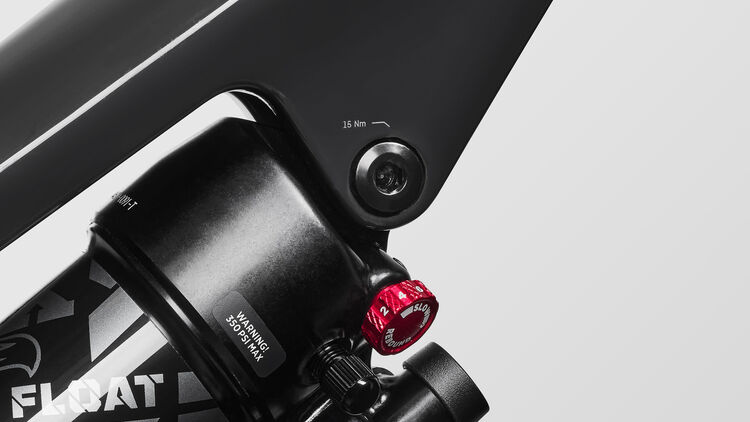

• Rear Shock
  • Fox Float X Performance Evolution
  • Tune: CL, RM, Rezi LM
  • Weight: 0.62 lbs

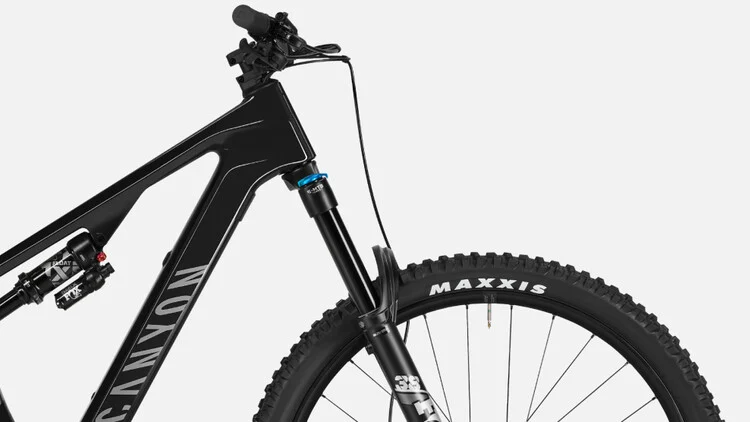

• Suspension Fork
  • Fox 38 Rhythm 160mm 29
  • Axle dimension: 15x110 mm
  • Stanchion Diameter: 38 mm
  • Travel: 160 mm
  • Fork steer tube diameter: 1 1/8" - 1,5"
  • Offset: 44 mm
  • Weight: 4.81 lbs

Drivetrain

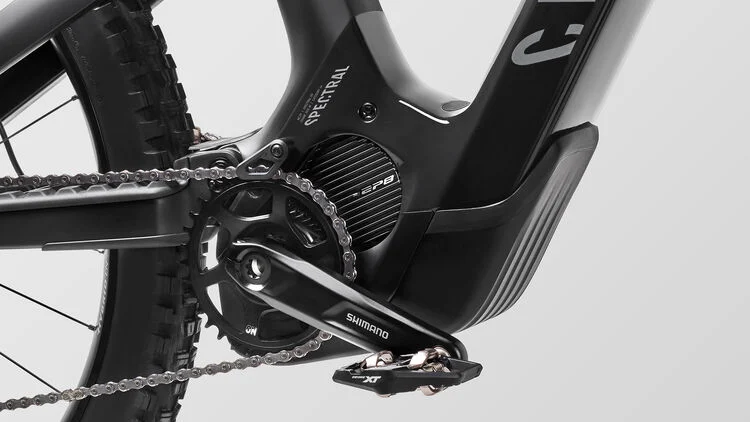

• Motor
  • Shimano EP801

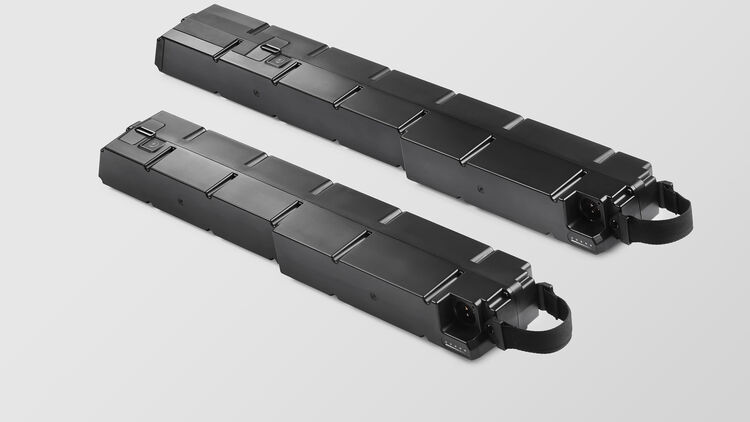

• Battery
  • CANYON BT010
• Rear Derailleur
  • Shimano Deore XT M8100
  • Cage length: long
  • Weight: 0.55 lbs
• Chainguard
  • Canyon Chainguide M091/M129
• Shift Lever
  • Shimano Deore SLX M7100
  • Weight: 0.32 lbs
• Cassette
  • Shimano Deore SLX CS-M7100
  • Number of sprockets: 12
  • Range: 10-51
• Crank
  • Shimano Steps
• Chainring
  • Canyon EP1110-01 Chainring 34T
• Chain
  • Shimano Deore M6100

Brakes

• Disc Brake
  • Shimano SLX M7120
  • Number of pistons: 2
• Disc Brake
  • Shimano SLX M7120
  • Number of pistons: 2
• Brake Rotor
  • Shimano RT64
  • Size: 203 mm
  • Weight: 0.45 lbs
• Brake Rotor
  • Shimano EM600 STEPS rear rotor, 203mm
  • Size: 203 mm
  • Weight: 0.45 lbs

Wheels

• Wheel
  • DT Swiss HLN350 15x110 30mm Centerlock
  • Axle dimension: 15x110 mm
  • Rotor mount: Center Lock
  • Weight: 2.26 lbs
• Wheel
  • DT Swiss HLN350 12x142 30mm Centerlock
  • Axle dimension: 12x142 mm
  • Rotor mount: Center Lock
  • Weight: 2.77 lbs

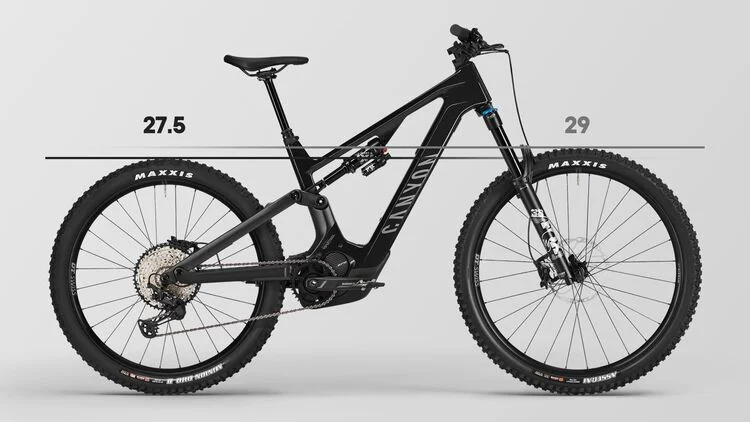

• Tyre
  • Maxxis Assegai
  • Width: 2.5"
  • Weight: 2.36 lbs
• Tyre
  • Maxxis Minion DHR II 27,5" x 2.60 WT
  • Width: 2.6"
  • Weight: 1.98 lbs
• Thru Axle
  • Canyon Quixle Through Axle QR 148x12
  • Axle dimension: 12x148 mm

Cockpit

• Stem
  • Canyon:ON ST0031
  • Canyon E-MTB stem.
  • Length: 45 mm
  • Fork steer tube diameter: 1 1/8"
  • Clamping diameter: 35,0 mm
• Handlebar
  • Canyon:ON HB0057 Riser bar
