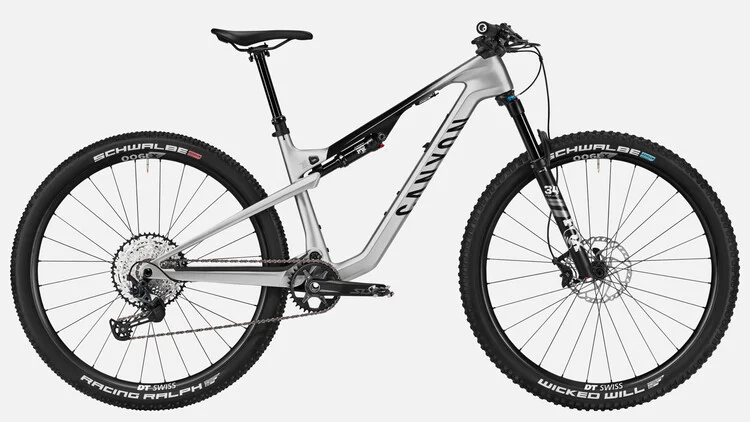

Lux Trail CF 7

ADD TO CART
BUY IT NOW
  • Detail

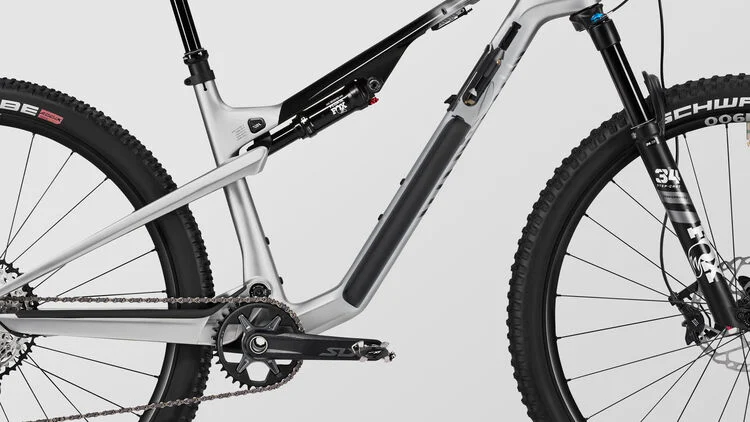

    Frame

    • Frame
      • Canyon Lux Trail CF
      • A fast, light carbon full-suspension 29er that hits the sweet spot between rapid climbing and composed, capable descending performance. Category 3.
      • Axle dimension: 12x148 mm
      • Material: Carbon (CF)
      • Weight: 4.54 lbs

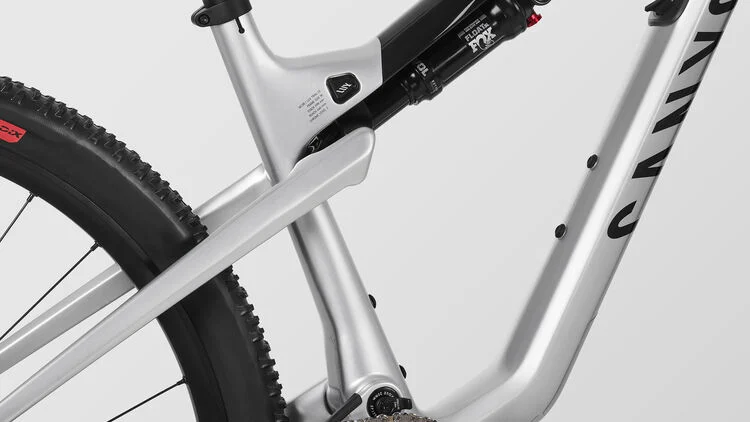

    • Rear Shock
      • FOX Float SL Performance Elite Remote
      • Weight: 0.62 lbs

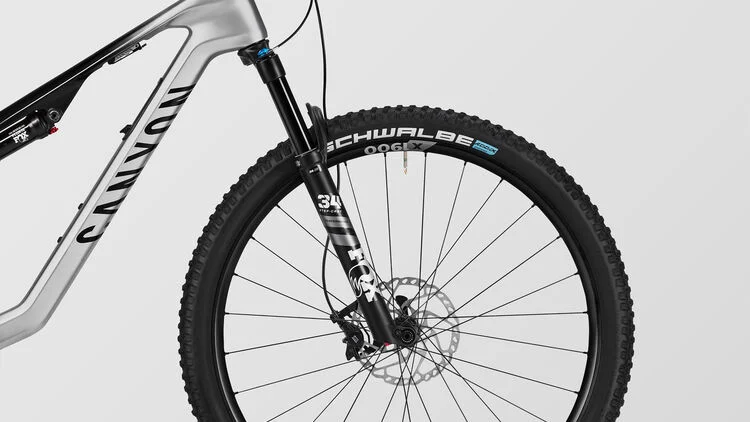

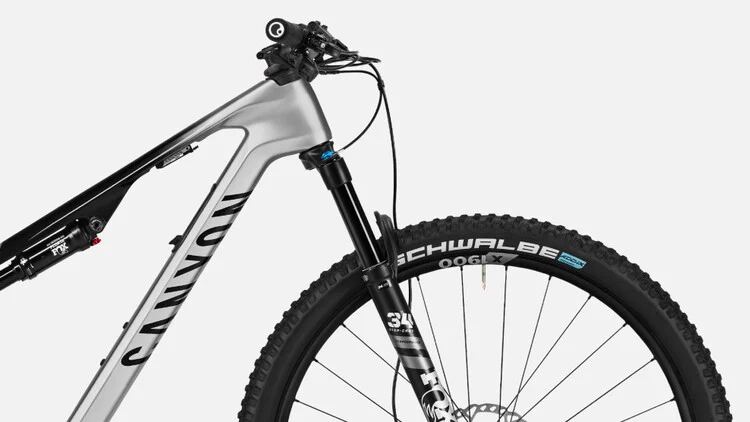

    • Suspension Fork
      • FOX 34 Stepcast Performance 3-Pos Remote
      • Axle dimension: 15x110 mm
      • Stanchion Diameter: 34 mm
      • Travel: 120 mm
      • Fork steer tube diameter: 1 1/8" - 1,5"
      • Offset: 44 mm
      • Volume Spacer Oe: 1
      • Weight: 3.35 lbs

    Drivetrain

    • Rear Derailleur
      • Shimano Deore SLX M7100
      • Cage length: long
      • Weight: 0.63 lbs
    • Shift Lever
      • Shimano Deore SLX M7100
      • Weight: 0.32 lbs
    • Cassette
      • Shimano Deore SLX CS-M7100
      • Number of sprockets: 12
      • Range: 10-51
    • Crank
      • Shimano SLX M7120
      • Number of chainrings: 1
    • Bottom bracket
      • Shimano MT800
      • Bottom bracket standard: BSA 68/73
      • Weight: 0.22 lbs
    • Chain
      • Shimano CN-M7100 12s

    Brakes

    • Disc Brake
      • Shimano SLX M7100
      • Number of pistons: 2
    • Disc Brake
      • Shimano SLX BR-M7110
      • Number of pistons: 2
    • Brake Rotor
      • Shimano RT66 160
      • Size: 160 mm
      • Weight: 0.24 lbs
    • Brake Rotor
      • Shimano RT66 180
      • Size: 180 mm
      • Weight: 0.31 lbs

    Wheels

    • Wheel
      • DT Swiss X 1900 Spline
      • Axle dimension: 15x110 mm
      • Rotor mount: IS 6-bolt
      • Inner width: 30 mm
      • Rim material: Aluminium
      • Weight: 2.12 lbs
    • Wheel
      • DT Swiss X 1900 Spline
      • Axle dimension: 12x148 mm
      • Rotor mount: IS 6-bolt
      • Inner width: 30 mm
      • Rim material: Aluminium
      • Weight: 2.38 lbs
    • Tyre
      • Schwalbe Racing Ralph SG TLE EVO 2.35"
      • Width: 2.35"
      • Weight: 1.65 lbs
    • Tyre
      • Schwalbe Wicked Will SR TLE EVO 2.4"
      • Width: 2.4"
      • Weight: 1.80 lbs
    • Thru Axle
      • Canyon Quixle Through Axle QR 148x12
      • Axle dimension: 12x148 mm

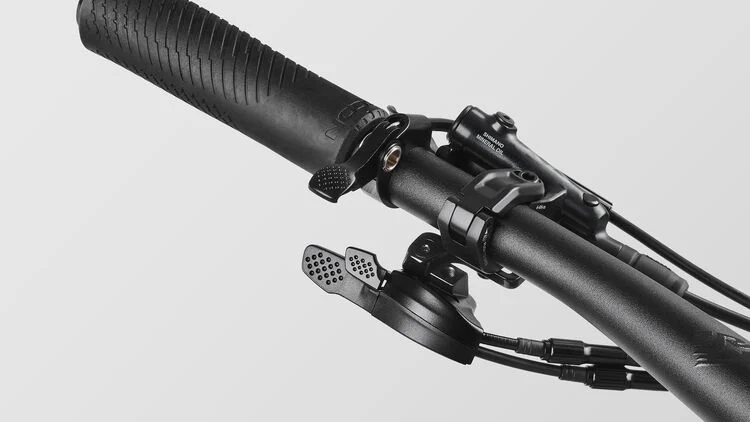

    Cockpit

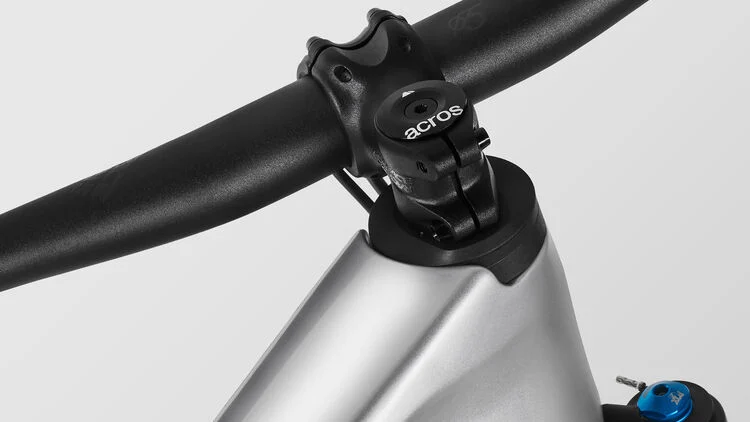

    • Stem
      • Race Face Ride
      • Fork steer tube diameter: 1 1/8"
      • Clamping diameter: 35,0 mm
    • Handlebar
      • Race Face Ride Riserbar
      • Clamping diameter: 35,0 mm
      • Width: 760 mm
      • Rise: 10 mm
