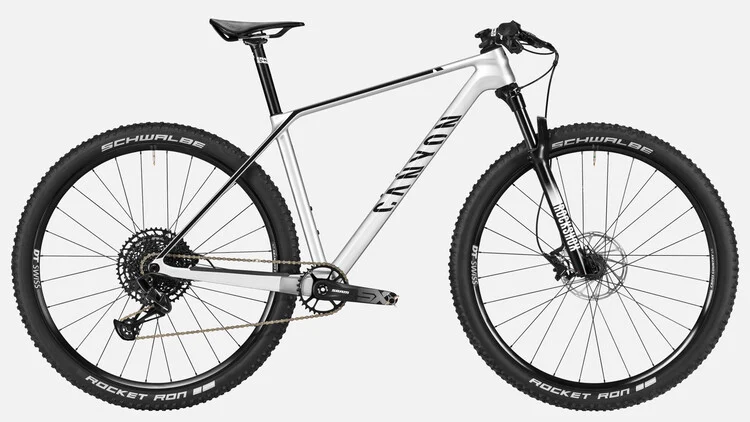

Exceed CF 5

Frame

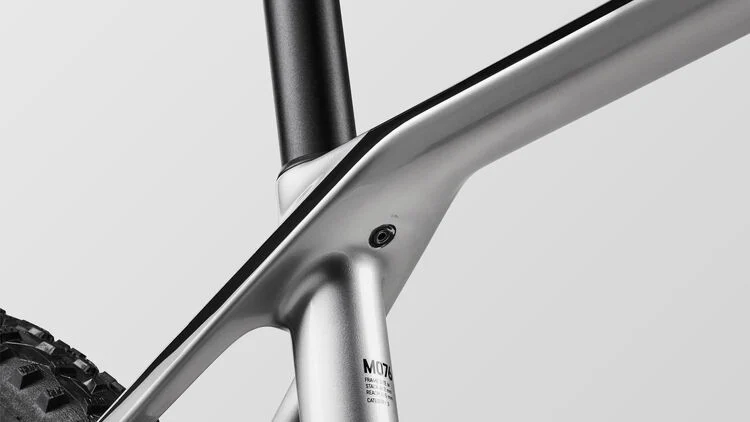

• Frame
  • Canyon Exceed CF
  • Our superlight, cross-country 29er hardtail gives you race DNA in an accessible carbon package.
  • Axle dimension: 12x148 mm
  • Material: Carbon (CF)
  • Weight: 3.20 lbs

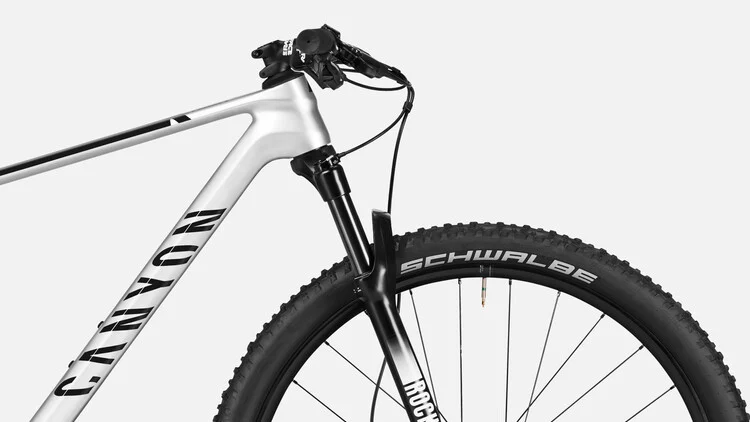

• Suspension Fork
  • RockShox Recon RL Remote
  • Travel: 100 mm
  • Fork steer tube diameter: 1 1/8" - 1,5"
  • Weight: 5.51 lbs

Drivetrain

• Rear Derailleur
  • SRAM SX Eagle
  • Weight: 0.90 lbs
• Shift Lever
  • SRAM SX Eagle
  • Weight: 0.29 lbs
• Cassette
  • SRAM PG-1230 Eagle 11-50 12s
  • Number of sprockets: 12
  • Range: 11-50 12S
• Crank
  • SRAM SX Eagle DUB
  • Number of chainrings: 1
• Bottom bracket
  • SRAM Pressfit DUB
  • Bottom bracket standard: PF 92
  • Weight: 0.17 lbs
• Chain
  • SRAM SX Eagle

Brakes

• Disc Brake
  • SRAM Level T
• Disc Brake
  • SRAM Level T
• Brake Rotor
  • SRAM Centerline Rounded
  • Size: 160 mm
  • Weight: 0.25 lbs
• Brake Rotor
  • SRAM Centerline Rounded
  • Size: 180 mm
  • Weight: 0.37 lbs

Wheels

• Wheel
  • DT Swiss LN XC
  • Axle dimension: 15x110 mm
  • Rotor mount: IS 6-bolt
  • Inner width: 25 mm
  • Rim material: Aluminium
  • Weight: 2.15 lbs
• Wheel
  • DT Swiss XC LN 370
  • Axle dimension: 12x148 mm
  • Rotor mount: IS 6-bolt
  • Rim material: Aluminium
• Tyre
  • Schwalbe Rocket Ron 2.25''
  • Width: 2.25"
  • Weight: 1.18 lbs
• Thru Axle
  • Canyon Quixle Through Axle QR 148x12
  • Axle dimension: 12x148 mm

Cockpit

• Handlebar
  • Race Face Ride Rise
  • Clamping diameter: 31,8 mm
  • Width: 740 mm
• Grips
  • Canyon push-on Grips

Seat

• Saddle
  • Selle Italia Model X
  • Width: 145 mm
  • Gender: Unisex
  • Max. Rider Weight: 100 kg
  • Weight: 0.68 lbs
• Seatpost
  • Race Face Ride
  • Clamp diameter: 30,9 mm
  • Material: Aluminium (AL)
  • Weight: 0.65 lbs

Accessories

• Pedals
  • None included
• Manuals and Accessories
  • Canyon Organza Bag
• Manuals and Accessories
