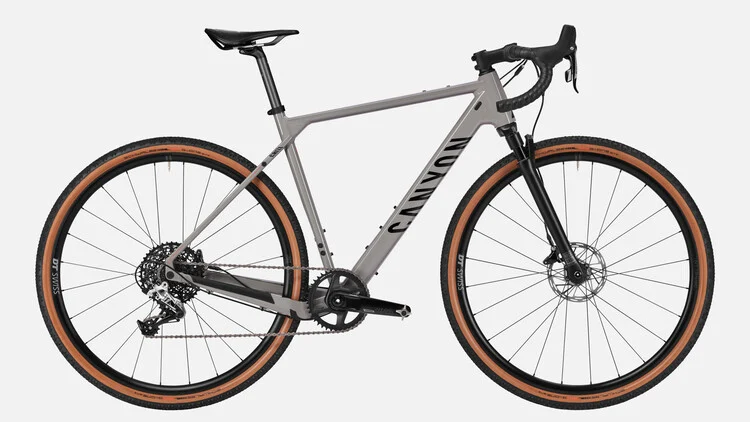

Grizl 7 Suspension 1by RAW

ADD TO CART
BUY IT NOW
  • Detail

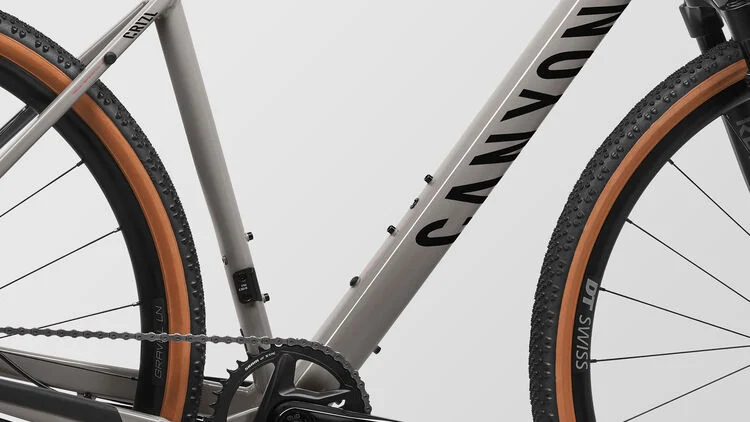

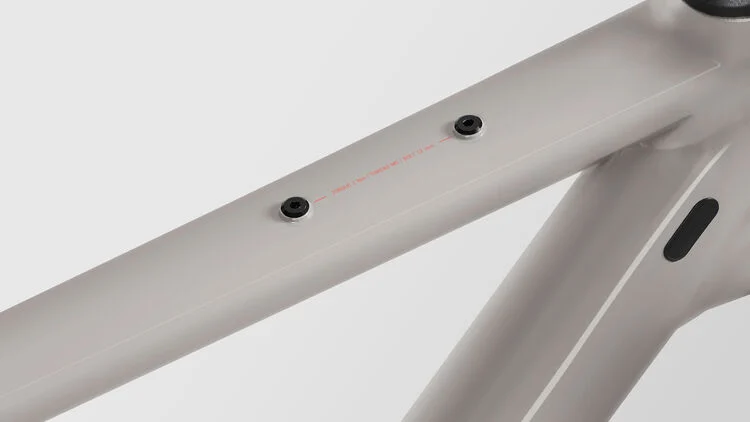

    Frame

    • Frame
      • Canyon Grizl AL
      • Aluminium frame with Gravel Pro geometry, a range of mounting points, and extended wheelbase for extra off-road stability.
      • Axle dimension: 12x142 mm
      • Tyre clearance: 50 mm
      • Material: Aluminium (AL)
      • Weight: 3.64 lbs

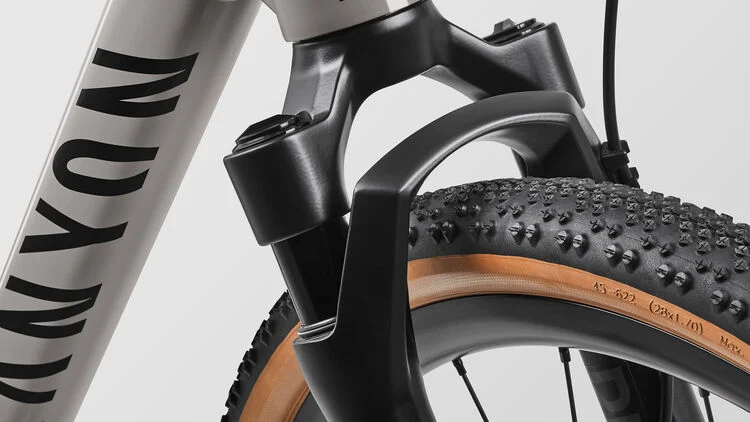

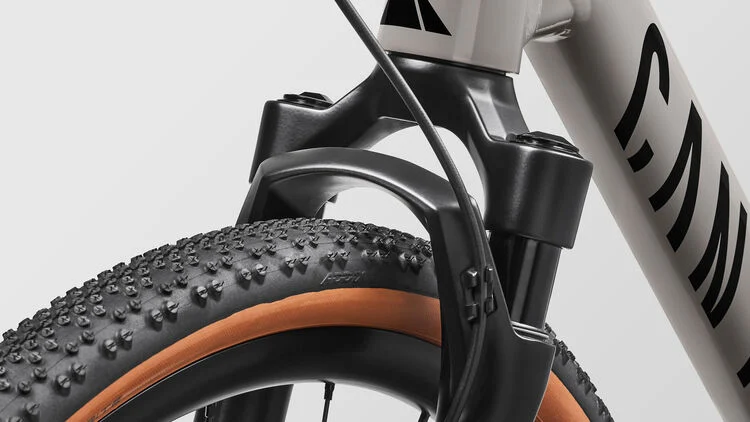

    • Suspension Fork
      • RockShox Rudy 30
      • Axle dimension: 12x100 mm
      • Stanchion Diameter: 30 mm
      • Travel: 30 mm
      • Fork steer tube diameter: 1 1/4"
      • Tyre clearance: 50 mm
      • Weight: 5.07 lbs

    Drivetrain

    • Rear Derailleur
      • SRAM Rival 1 SGS
      • Cage length: long
      • Weight: 0.61 lbs
    • Cassette
      • SRAM XG-1150 10-42 11s
      • Number of sprockets: 11
    • Crank
      • SRAM Rival D1 Wide, 40T
      • Number of chainrings: 1
    • Bottom bracket
      • SRAM Pressfit DUB Wide
      • Bottom bracket standard: PF 86,5
      • Weight: 0.14 lbs
    • Chain
      • SRAM PC 1110 11s

    Brakes

    • Disc Brake
      • DB SRAM RIV A1 LF FMD 1000 ISJ
    • Shift-/ Brake Lever
      • SBL SRAM RIV A! RR FM 2000 ISJ
      • Weight: 1.03 lbs
    • Brake Rotor
      • SRAM Paceline
      • Size: 160 mm
      • Weight: 0.35 lbs

    Wheels

    • Wheel
      • DT Swiss Gravel LN
      • Axle dimension: 12x100 mm
      • Rotor mount: Center Lock
      • Rim height: 25 mm
      • Inner width: 24 mm
      • Rim material: Aluminium
      • Weight: 2.09 lbs
    • Wheel
      • DT Swiss Gravel LN
      • Rotor mount: Center Lock
      • Rim height: 25 mm
      • Weight: 2.09 lbs
    • Tyre
      • TY SCHW G-ONE OVERLAND SKIN 45-622
      • Width: 45 mm
      • Weight: 1.48 lbs
    • Thru Axle
      • Canyon GP0235-01
      • Axle dimension: 12x142 mm

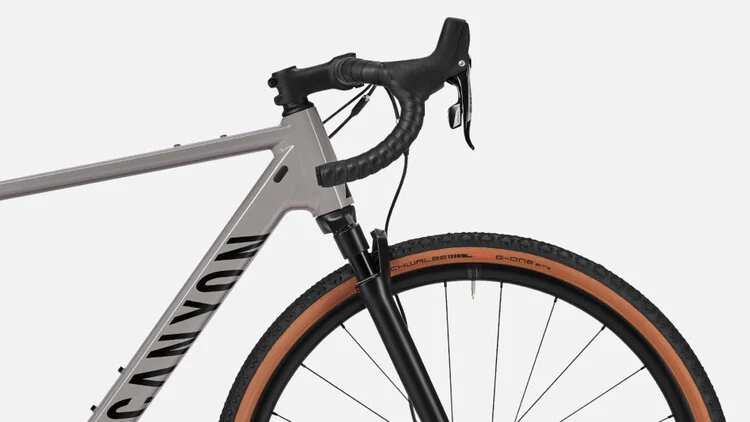

    Cockpit

    • Stem
      • Canyon ST0035
      • A lightweight and durable aluminium stem for use on gravel and road bikes.
      • Fork steer tube diameter: 1 1/4"
      • Clamping diameter: 31,8 mm
    • Handlebar
      • Canyon HB 0050 Ergobar AL
      • Aluminium handlebar with comfortable, ergonomically optimised design.
      • Material: Aluminium
      • Shape: Ergo
      • Reach: 70 mm
      • Drop: 130 mm
    • Handlebar Tape
      • Canyon Ergospeed Gel
      • Grippy, durable bar tape with a premium, high-quality, comfortable feel.
      • Color: black

    Seat

    • Saddle
      • Selle Italia Model X
      • Width: 145 mm
      • Gender: Unisex
      • Max. Rider Weight: 100 kg
      • Weight: 0.68 lbs
    • Seatpost
      • Canyon SP0057 VCLS
      • With vibration-absorbing design for top rear-end comfort.
