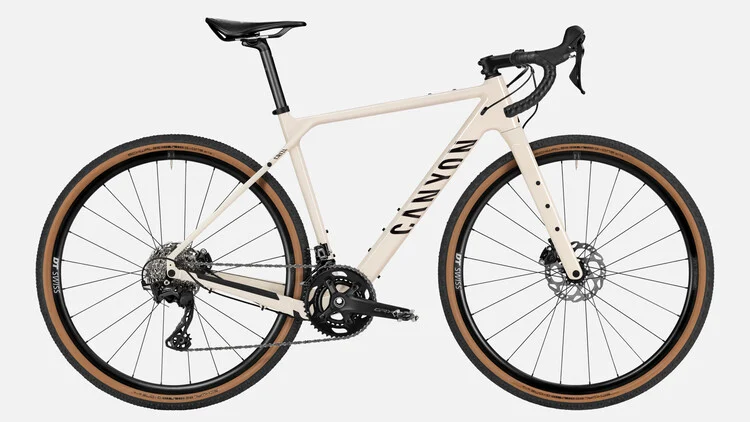

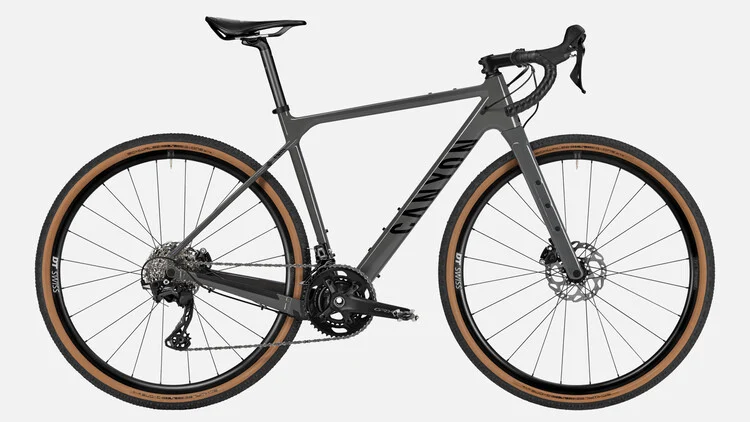

Grizl 7 RAW

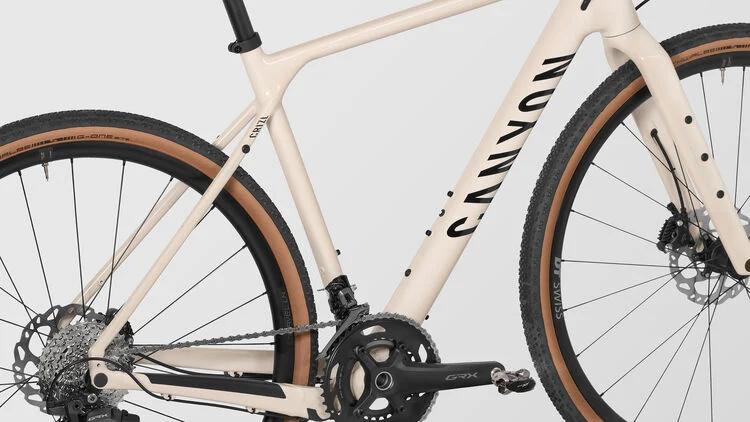

Frame

• Frame
  • Canyon Grizl AL
  • Aluminium frame with Gravel Pro geometry, a range of mounting points, and extended wheelbase for extra off-road stability.
  • Axle dimension: 12x142 mm
  • Tyre clearance: 50 mm
  • Material: Aluminium (AL)
  • Weight: 3.64 lbs

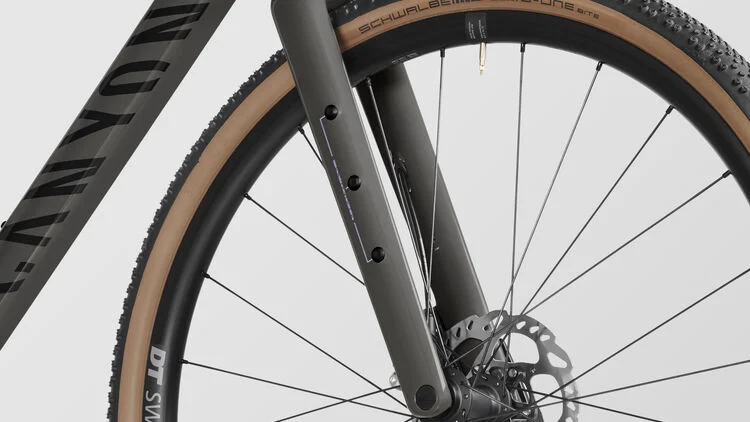

• Fork
  • Canyon FK0087 CF Disc
  • Light, robust carbon frame with 3-screw mounting points on each side for attaching bottle cages and Anything Cages.
  • Axle dimension: 12x100 mm
  • Fork steer tube diameter: 1 1/4"
  • Tyre clearance: 54 mm
  • Material: Carbon (CF)
  • Weight: 1.10 lbs

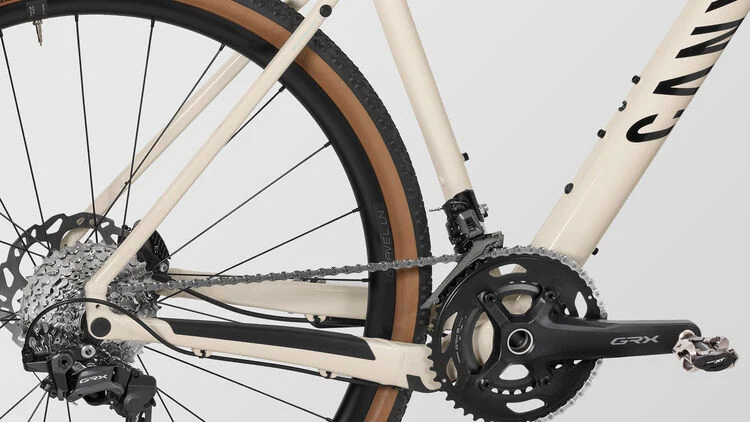

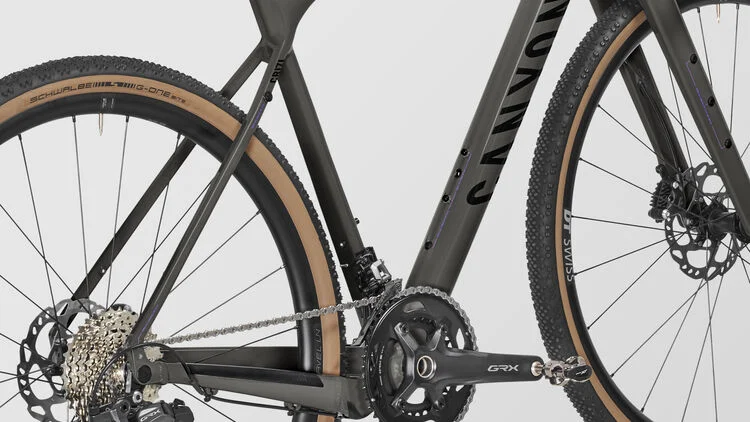

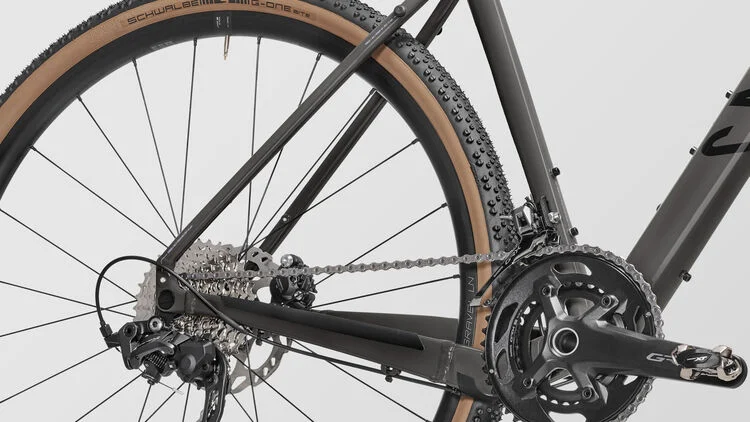

Drivetrain

• Rear Derailleur
  • Shimano GRX RD-RX820 12s
  • Weight: 0.60 lbs
• Front Derailleur
  • Shimano GRX FD-RX820
  • Weight: 0.21 lbs
• Cassette
  • Shimano CS-HG710 11-36 12s
  • Number of sprockets: 12
  • Range: 11-36
• Crank
  • Shimano GRX FC-RX610
  • Number of chainrings: 2
• Bottom bracket
  • Token Ninja Lite BB4124
  • Bottom bracket standard: PF 86,5
  • Weight: 0.19 lbs
• Chain
  • Shimano Deore M6100

Brakes

• Shift-/ Brake Lever
  • Shimano GRX BL-RX610
  • Number of pistons: 2
  • Weight: 1.09 lbs
• Shift-/ Brake Lever
  • Shimano GRX BL-RX610
  • Number of pistons: 2
  • Weight: 1.08 lbs
• Shift-/ Brake Lever
  • Shift brake lever RX610
• Brake Rotor
  • Shimano SM-RT70
  • Size: 160 mm
  • Weight: 0.32 lbs

Wheels

• Wheel
  • DT Swiss Gravel LN
  • Axle dimension: 12x100 mm
  • Rotor mount: Center Lock
  • Rim height: 25 mm
  • Inner width: 24 mm
  • Rim material: Aluminium
  • Weight: 2.09 lbs
• Wheel
  • DT Swiss Gravel LN
  • Axle dimension: 12x142 mm
  • Rotor mount: Center Lock
  • Rim height: 25 mm
  • Free hub: Shimano
  • Inner width: 24 mm
  • Rim material: Aluminium
  • Weight: 2.52 lbs

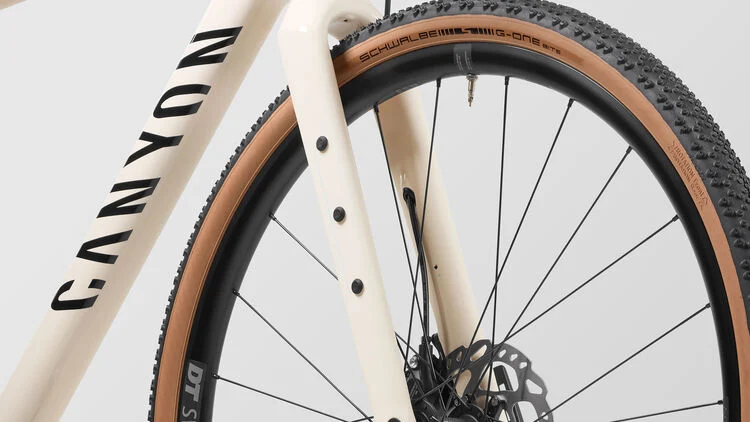

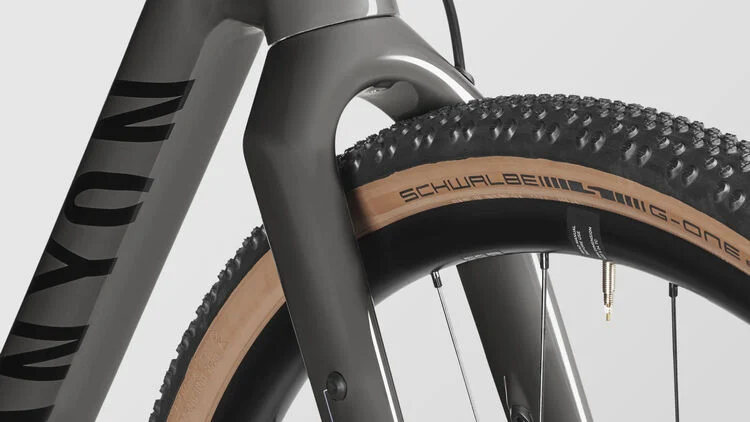

• Tyre
  • Schwalbe G-One Bite Performance, 45mm
  • Width: 45 mm
  • Weight: 1.21 lbs
• Thru Axle
  • Canyon GP0197-01
  • Axle dimension: 12x100 mm
• Thru Axle
  • Canyon GP0235-01
  • Axle dimension: 12x142 mm

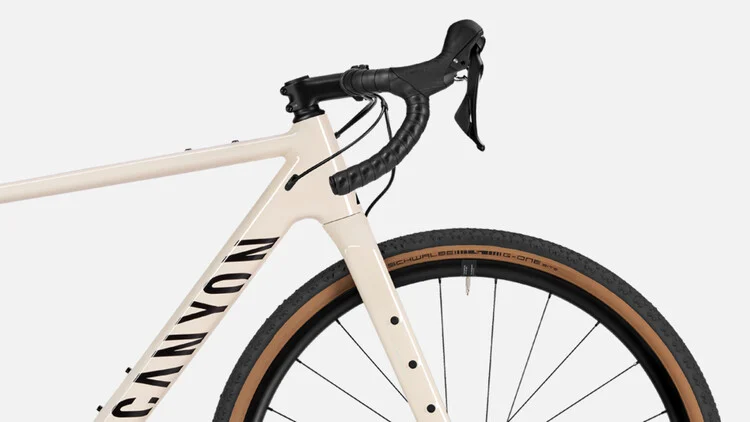

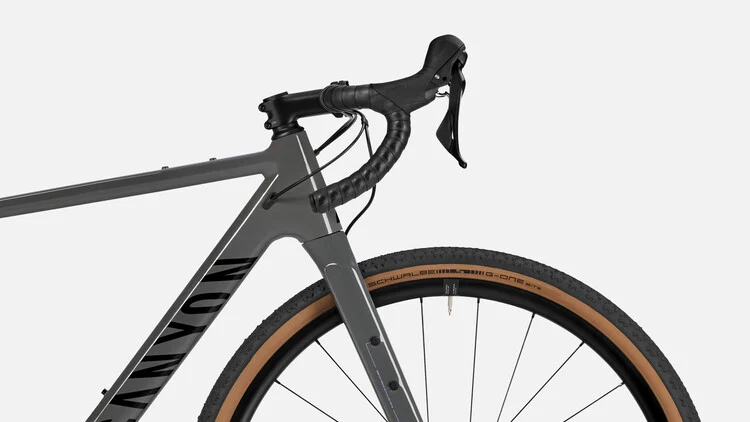

Cockpit

• Stem
  • Canyon ST0035
  • A lightweight and durable aluminium stem for use on gravel and road bikes.
  • Fork steer tube diameter: 1 1/4"
  • Clamping diameter: 31,8 mm
• Handlebar
  • Canyon HB0064 Ergo
  • Robust aluminium handlebar with flared drops for enhanced off-road control.
  • Clamping diameter: 31,8 mm
  • Width: 440 mm
• Handlebar Tape
  • Canyon Ergospeed Gel
  • Grippy, durable bar tape with a premium, high-quality, comfortable feel.
  • Color: black

Seat

• Saddle
  • Selle Italia Model X
  • Width: 145 mm
  • Gender: Unisex
  • Max. Rider Weight: 100 kg
  • Weight: 0.68 lbs
• Seatpost
  • Canyon SP0057 VCLS
  • With vibration-absorbing design for top rear-end comfort.
  • Setback: 20 mm
  • Clamp diameter: 27,2 mm
  • Material: Carbon (CF)
  • Weight: 0.58 lbs
• Seat Clamp
  • Canyon Clamp SL

Accessories

• Pedals
  • None included
• Manuals and Accessories
  • Canyon Organza Bag
• Manuals and Accessories
  • Canyon Assembly Paste
• Manuals and Accessories
  • Canyon Torque Wrench
• Manuals and Accessories
  • Canyon Quick Start Guide
• Manuals and Accessories
  • Canyon starter box
