Grizl 6 RAW

Frame

• Frame
  • Canyon Grizl AL
  • Aluminium frame with Gravel Pro geometry, a range of mounting points, and extended wheelbase for extra off-road stability.
  • Axle dimension: 12x142 mm
  • Tyre clearance: 50 mm
  • Material: Aluminium (AL)
  • Weight: 3.64 lbs

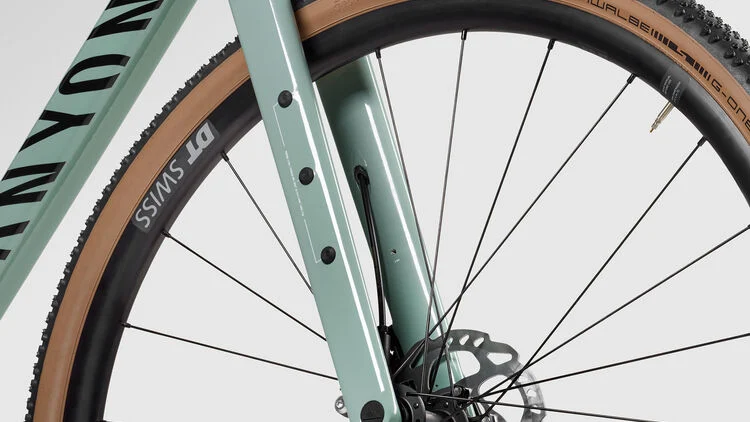

• Fork
  • Canyon FK0087 CF Disc
  • Light, robust carbon frame with 3-screw mounting points on each side for attaching bottle cages and Anything Cages.
  • Axle dimension: 12x100 mm
  • Fork steer tube diameter: 1 1/4"
  • Tyre clearance: 54 mm
  • Material: Carbon (CF)
  • Weight: 1.10 lbs

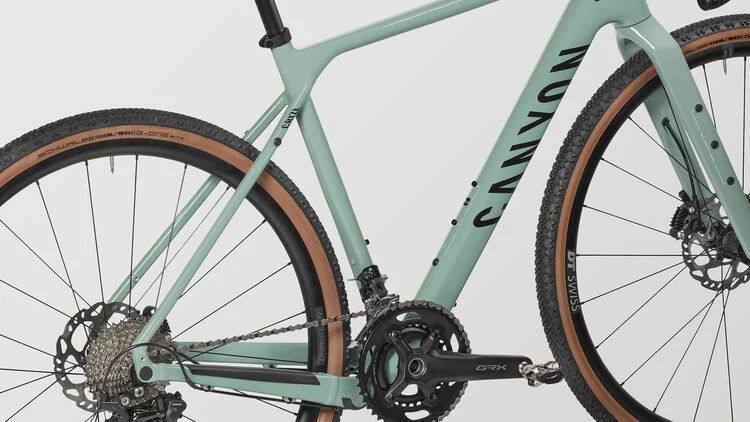

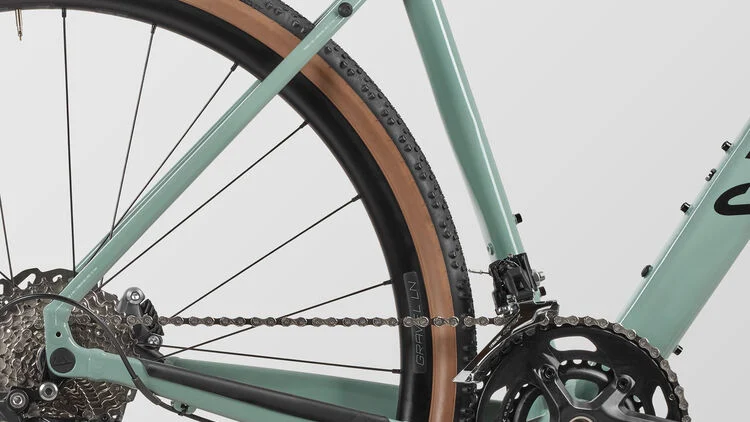

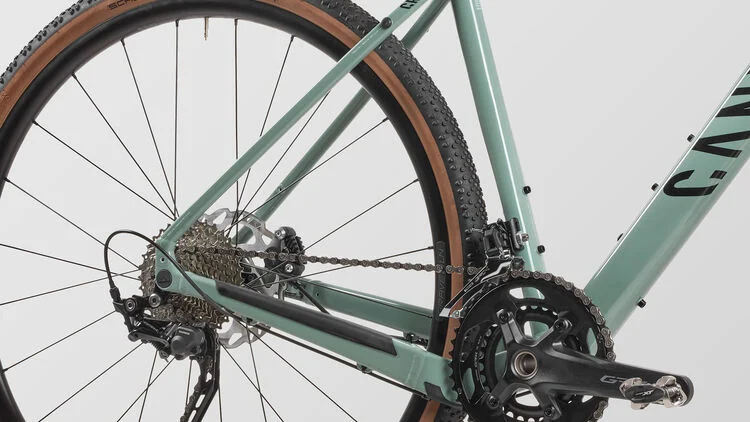

Drivetrain

• Rear Derailleur
  • Shimano GRX RD-RX400
  • Cage length: long
  • Weight: 0.45 lbs
• Front Derailleur
  • Shimano GRX FD-RX400-F
  • Weight: 0.22 lbs
• Cassette
  • Shimano HG500 11-34 10s
  • Number of sprockets: 10
  • Range: 11-34
• Crank
  • Shimano GRX FC-RX600-10
  • Number of chainrings: 2
• Bottom bracket
  • Token Ninja Lite BB4124
  • Bottom bracket standard: PF 86,5
  • Weight: 0.19 lbs
• Chain
  • KMC Connection Link 10s
• Chain
  • KMC X10-93 10s

Brakes

• Shift-/ Brake Lever
  • Shimano GRX RX400
  • Weight: 0.68 lbs
• Shift-/ Brake Lever
  • Shimano GRX RX400
  • Weight: 0.67 lbs
• Brake Rotor
  • Shimano RT54
  • Size: 160 mm
  • Weight: 0.34 lbs

Wheels

• Wheel
  • DT Swiss Gravel LN
  • Axle dimension: 12x100 mm
  • Rotor mount: Center Lock
  • Rim height: 25 mm
  • Inner width: 24 mm
  • Rim material: Aluminium
  • Weight: 2.09 lbs
• Wheel
  • DT Swiss Gravel LN
  • Axle dimension: 12x142 mm
  • Rotor mount: Center Lock
  • Rim height: 25 mm
  • Free hub: Shimano
  • Inner width: 24 mm
  • Rim material: Aluminium
  • Weight: 2.52 lbs
• Tyre
  • Schwalbe G-One Bite Performance, 45mm
  • Width: 45 mm
  • Weight: 1.21 lbs
• Thru Axle
  • Canyon GP0197-01
  • Axle dimension: 12x100 mm
• Thru Axle
  • Canyon GP0235-01
  • Axle dimension: 12x142 mm

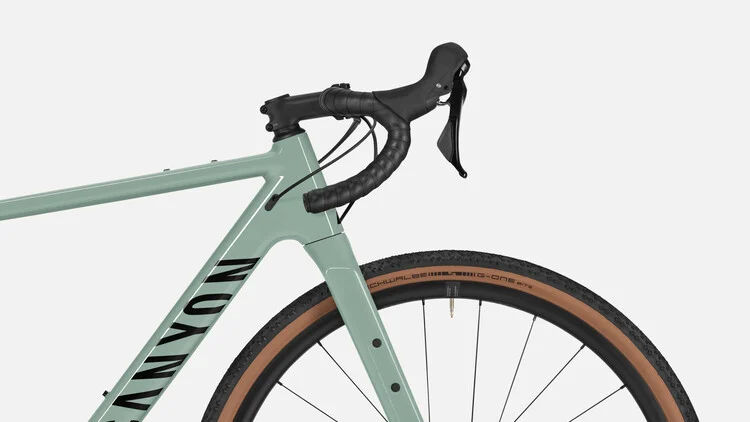

Cockpit

• Stem
  • Canyon ST0035
  • A lightweight and durable aluminium stem for use on gravel and road bikes.
  • Fork steer tube diameter: 1 1/4"
  • Clamping diameter: 31,8 mm
• Handlebar
  • Canyon HB0064 Ergo
  • Robust aluminium handlebar with flared drops for enhanced off-road control.
  • Clamping diameter: 31,8 mm
  • Width: 440 mm
• Handlebar Tape
  • Canyon Ergospeed Gel
