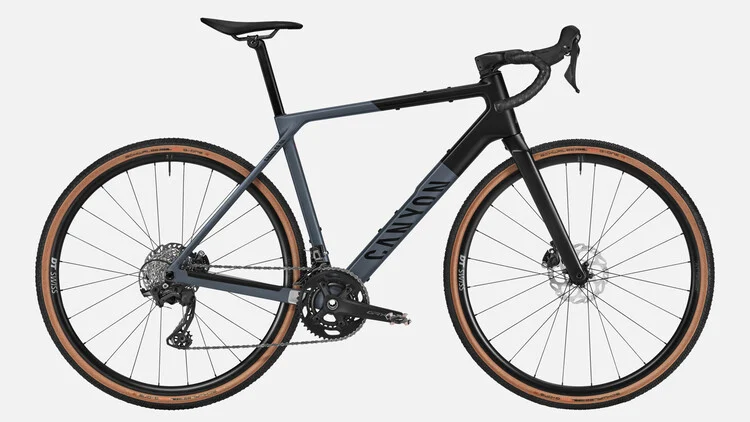

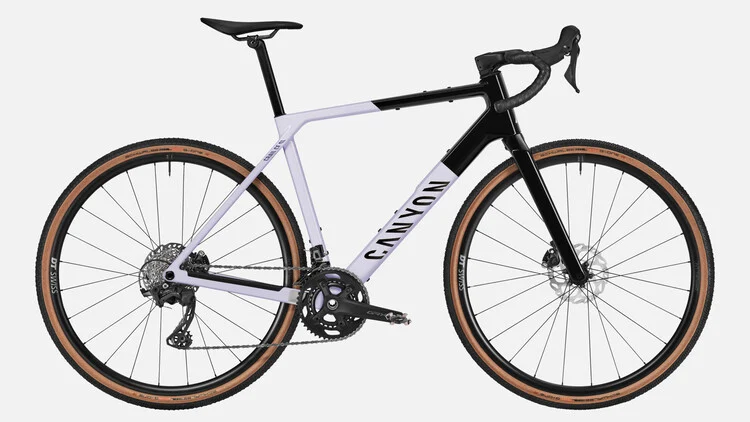

Grail CF SL 7

Frame

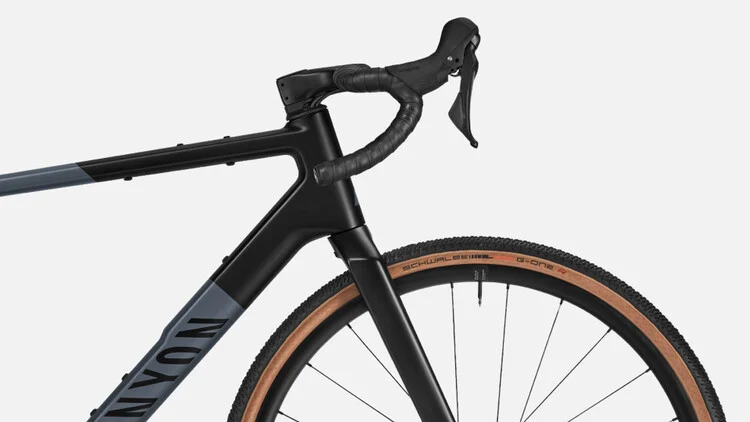

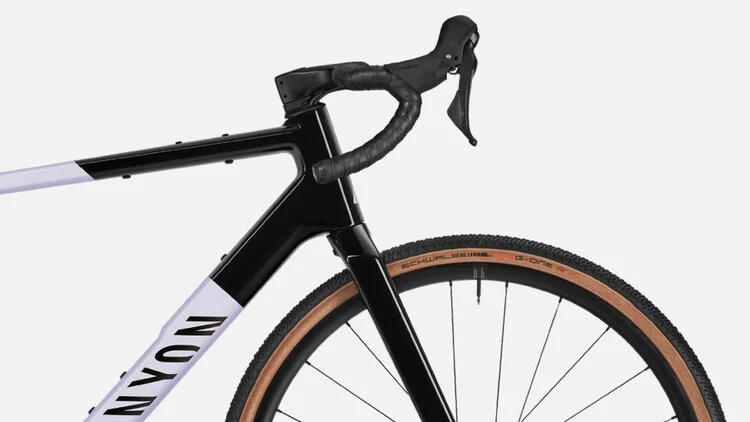

• Frame
  • Canyon Grail CF SL

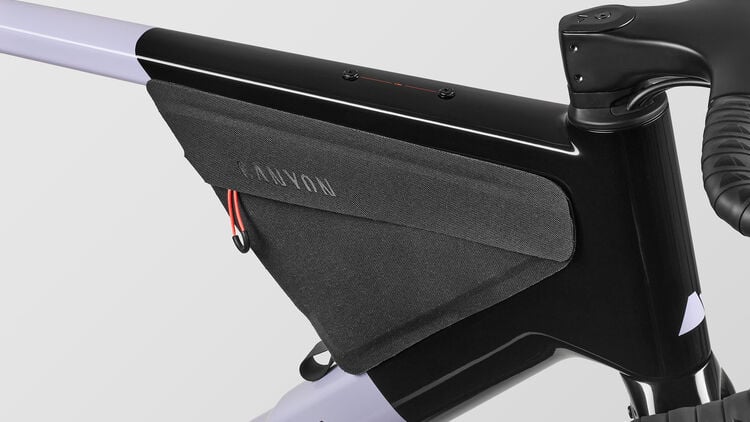

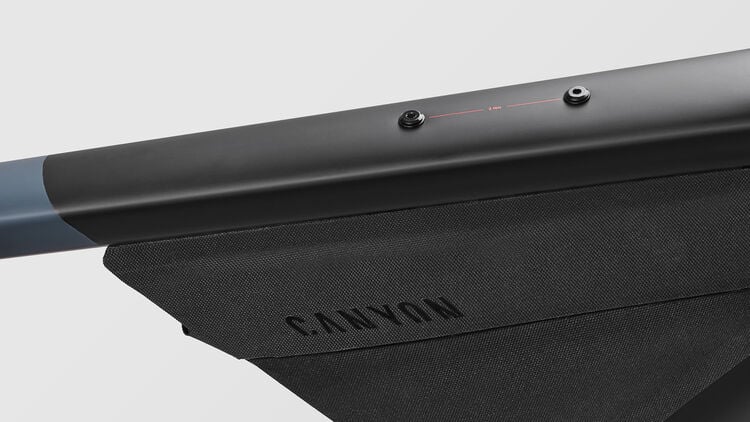

  • Latest-generation Grail carbon gravel race bike with more capable geometry, aero tube forms, top tube mounts and strapless bag compatibility.
  • Axle dimension: 12x142 mm
  • Tyre clearance: 42 mm
  • Material: Carbon (CF)
  • Weight: 3.57 lbs
• Fork
  • Canyon FK0117 CF Disc

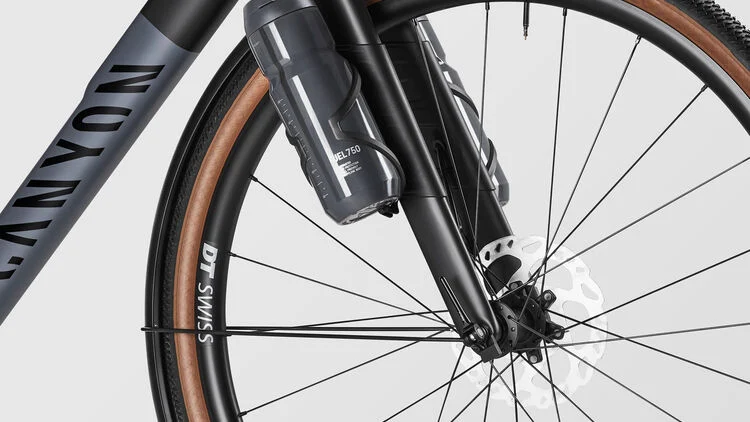

  • Robust, stiff, compliant carbon fork. Compatible with LOAD Fork Sleeve Quickloader system for modular, secure storage.
  • Axle dimension: 12x100 mm
  • Fork steer tube diameter: 1 1/8"
  • Tyre clearance: 42 mm
  • Material: Carbon (CF)
  • Weight: 1.02 lbs

Drivetrain

• Rear Derailleur
  • Shimano GRX RD-RX820 12s
  • Weight: 0.60 lbs
• Front Derailleur
  • Shimano GRX FD-RX820
  • Weight: 0.21 lbs
• Cassette
  • Shimano 105 R7101 11-34 12s
  • Number of sprockets: 12
  • Range: 11-34
• Crank
  • Shimano GRX FC-RX610
  • Number of chainrings: 2
• Bottom bracket
  • Token Ninja Lite BB4124
  • Bottom bracket standard: PF 86,5
  • Weight: 0.19 lbs
• Chain
  • Shimano Deore M6100

Brakes

• Shift-/ Brake Lever
  • Shimano GRX BL-RX610
  • Number of pistons: 2
  • Weight: 1.09 lbs
• Shift-/ Brake Lever
  • Shimano GRX BL-RX610
  • Number of pistons: 2
  • Weight: 1.08 lbs
• Brake Rotor
  • Shimano SM-RT70
  • Size: 160 mm
  • Weight: 0.32 lbs

Wheels

• Wheel
  • DT Swiss Gravel LN
  • Axle dimension: 12x100 mm
  • Rotor mount: Center Lock
  • Rim height: 25 mm
  • Inner width: 24 mm
  • Rim material: Aluminium
  • Weight: 2.09 lbs
• Wheel
  • DT Swiss Gravel LN
  • Axle dimension: 12x142 mm
  • Rotor mount: Center Lock
  • Rim height: 25 mm
  • Free hub: Shimano
  • Inner width: 24 mm
  • Rim material: Aluminium
  • Weight: 2.52 lbs
• Tyre
  • Schwalbe G-One R, 40mm
  • Width: 40 mm
  • Weight: 1.06 lbs
• Thru Axle
  • Canyon GP0197-01
  • Axle dimension: 12x100 mm
• Thru Axle
  • Canyon GP0235-01

Cockpit

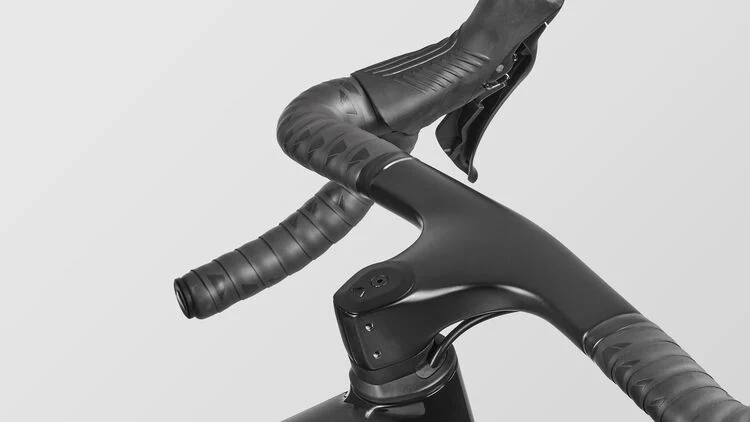

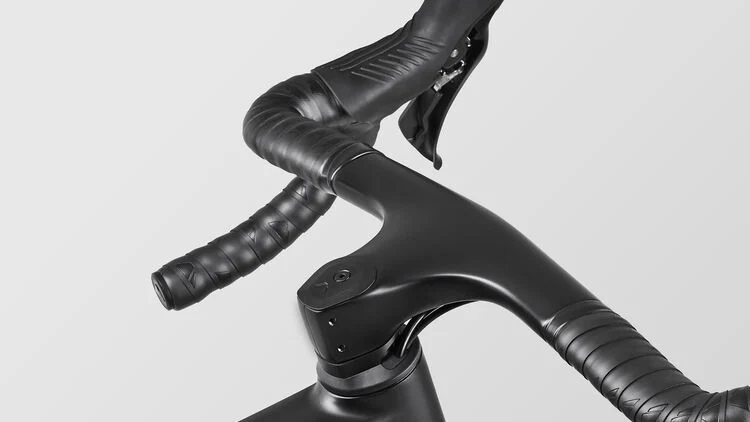

• Cockpit
  • Canyon Cockpit CP0045
  • One-piece carbon cockpit with specialist gravel ergonomics and design. 16° flare on at drops, 5° backsweep on tops.
  • Material: Carbon (CF)
  • Weight: 0.73 lbs
• Handlebar Tape
  • Canyon Ergospeed Gel
  • Grippy, durable bar tape with a premium, high-quality, comfortable feel.
  • Color: black

Seat

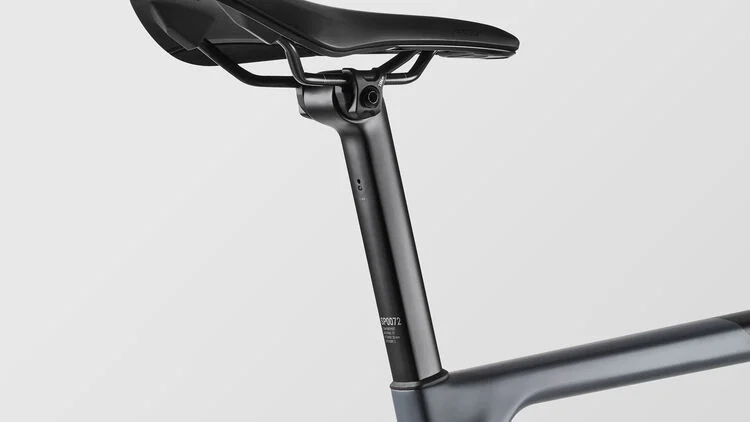

• Saddle
  • Vento Argo X5
  • Width: 140 mm
  • Gender: Unisex
