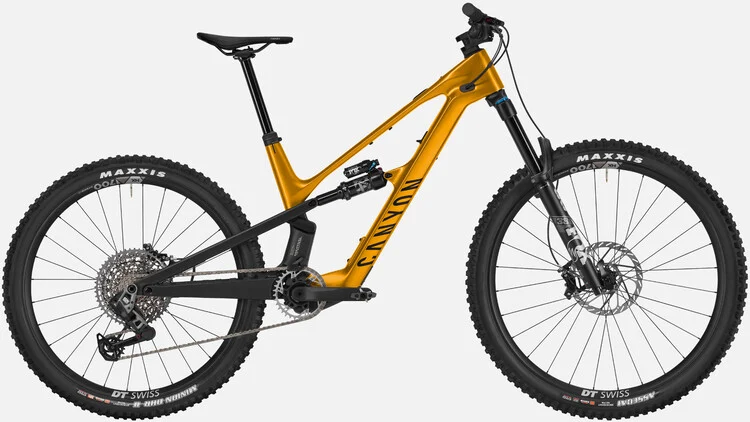

Spectral:ONfly CF CLLCTV

Frame

• Frame
  • Canyon Spectral:ONfly CF
  • Axle dimension: 12x148 mm
  • Material: Carbon (CF)
  • Weight: 5.95 lbs
• Rear Shock
  • Fox Float x Performance
  • Weight: 1.10 lbs
• Suspension Fork
  • Fox 38 Performance Elite 160mm 29
  • Axle dimension: 15x110 mm
  • Stanchion Diameter: 38 mm
  • Travel: 160 mm
  • Fork steer tube diameter: 1 1/8" - 1,5"
  • Offset: 44 mm
  • Weight: 5.42 lbs

Drivetrain

• Motor
  • TQ HPR 50 Motor
• Battery
  • SRAM Powerpack
• Battery
  • TQ HPR Battery
• Rear Derailleur
  • SRAM GX Eagle AXS Transmission
  • Weight: 1.02 lbs
• Chainguard
  • Canyon GP0480-01 slim
• Shift Lever
  • SRAM AXS Pod
  • Weight: 0.15 lbs
• Cassette
  • SRAM XS-1275 Eagle Transmission
  • Number of sprockets: 12
  • Range: 10-52
• Crank
  • FSA CK-745/IS Armset
• Chainring
  • SRAM XX Eagle Transmission DM E-MTB Chainring
• Chain
  • SRAM GX Eagle Transmission

Brakes

• Disc Brake
  • SRAM Code Silver Stealth
  • Number of pistons: 4
• Disc Brake
  • SRAM Code Silver Stealth
  • Number of pistons: 4
• Brake Rotor
  • SRAM HS2
  • Size: 200 mm
  • Weight: 0.56 lbs

Wheels

• Wheel
  • DT Swiss HX1700
  • Axle dimension: 15x110 mm
  • Rotor mount: Center Lock
  • Rim height: 21 mm
  • Inner width: 30 mm
  • Rim material: Aluminium
  • Weight: 2.20 lbs
• Wheel
  • DT Swiss HX 1700 Spline LS
  • Axle dimension: 12x148 mm
  • Rotor mount: Center Lock
  • Inner width: 30 mm
  • Weight: 2.46 lbs
• Tyre
  • Maxxis Assegai
  • Width: 2.5"
  • Weight: 2.36 lbs
• Tyre
  • Maxxis Minion DHR II Exo+
  • Width: 2.4"
  • Weight: 2.21 lbs
• Thru Axle
  • Canyon Quixle Through Axle QR 148x12
  • Axle dimension: 12x148 mm

Cockpit

• Stem
  • Canyon:ON ST0031
  • Canyon E-MTB stem.
  • Length: 45 mm
  • Fork steer tube diameter: 1 1/8"
  • Clamping diameter: 35,0 mm
• Handlebar
  • Canyon:ON HB0057 Riser bar
  • Canyon-developed E-MTB handlebar for top control levels on the trail.
  • Clamping diameter: 35,
