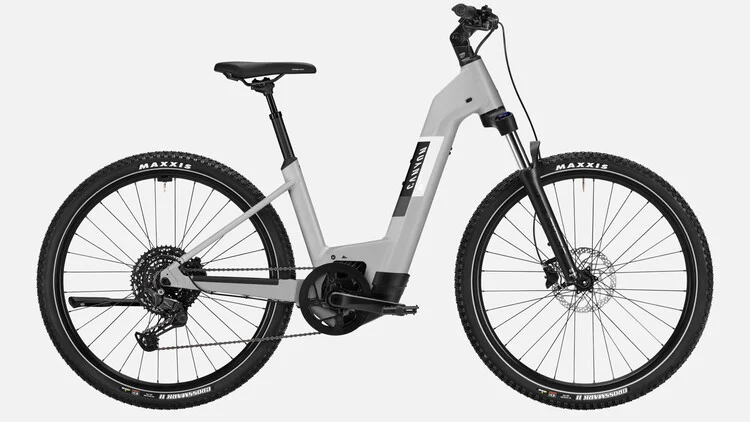

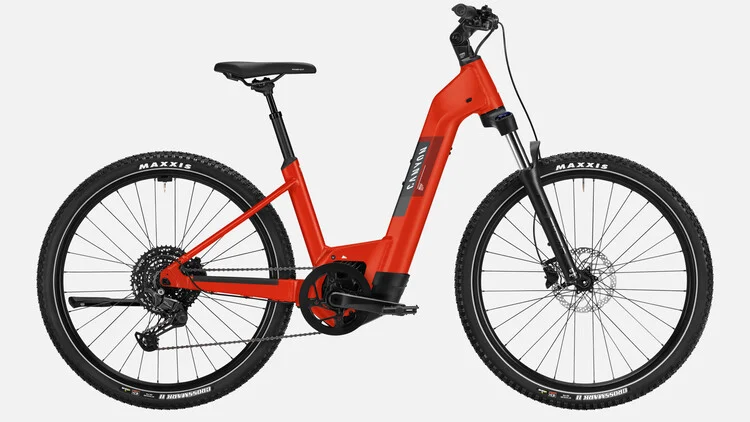

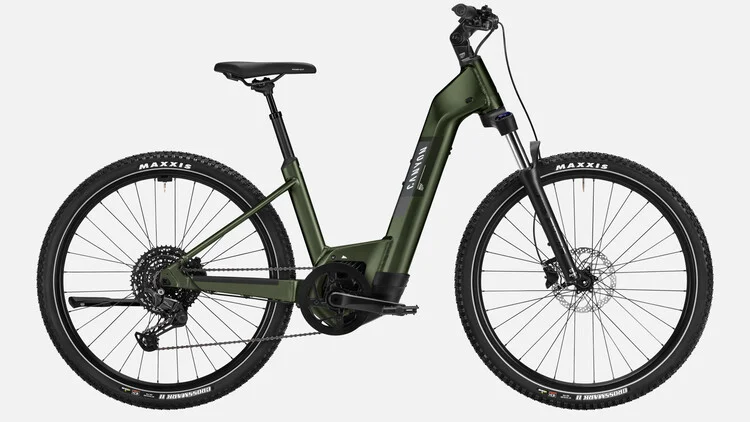

Pathlite:ON 5 SUV step-through

Frame

• Frame

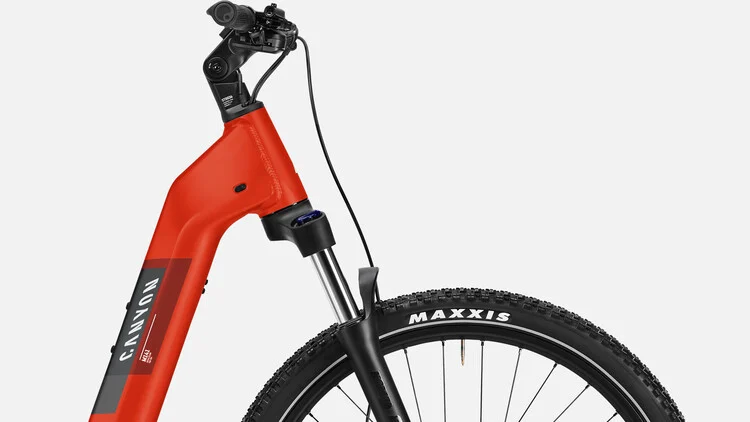

  • Canyon Pathlite:ON Step-Through
  • A tough, feature-rich e-touring bike with a comfortable riding position and easy-to-mount design.
  • Axle dimension: 12x148 mm
  • Material: Aluminium (AL)
  • Weight: 3.57 lbs

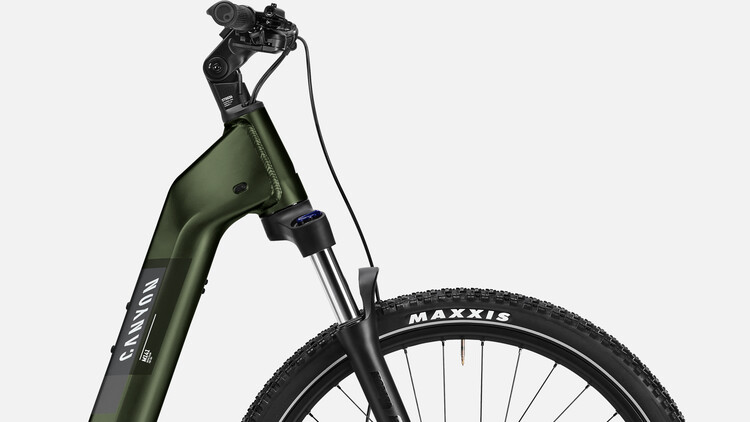

• Suspension Fork

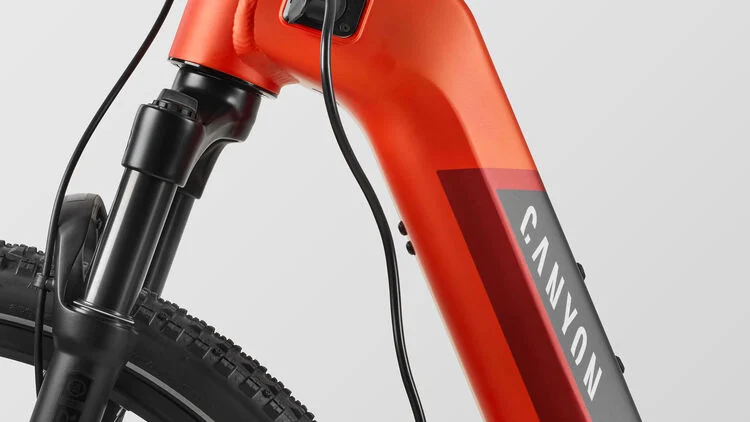

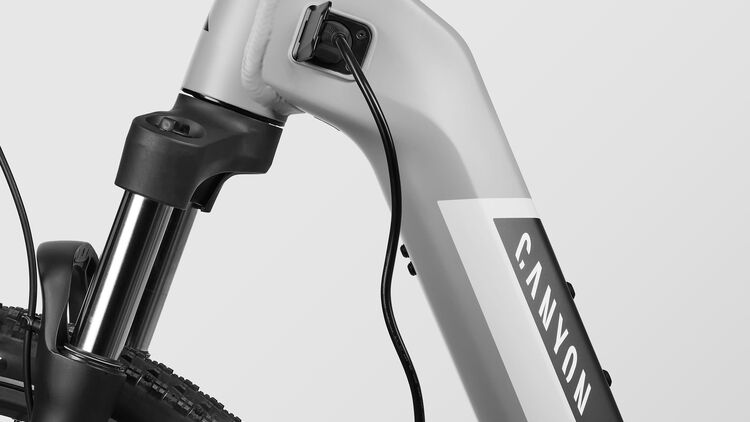

  • SR Suntour XCM34 BOOST
  • Axle dimension: 15x110 mm
  • Stanchion Diameter: 34 mm
  • Travel: 100 mm
  • Fork steer tube diameter: 1 1/8" - 1,5"

Drivetrain

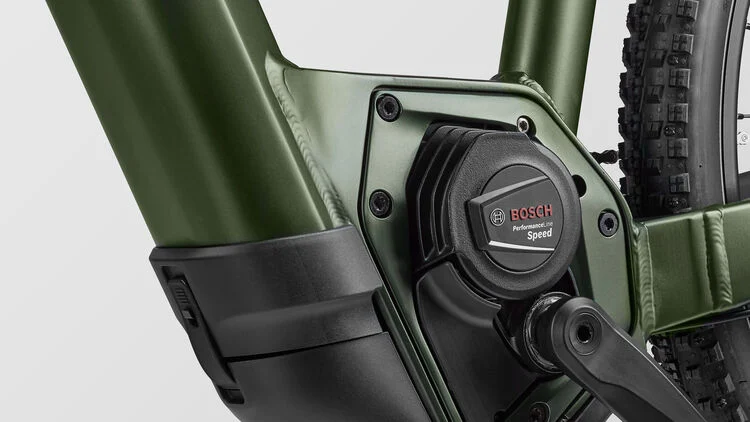

• Motor

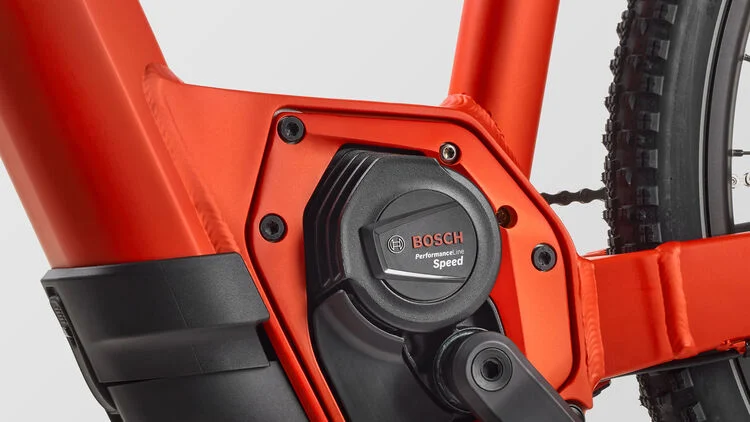

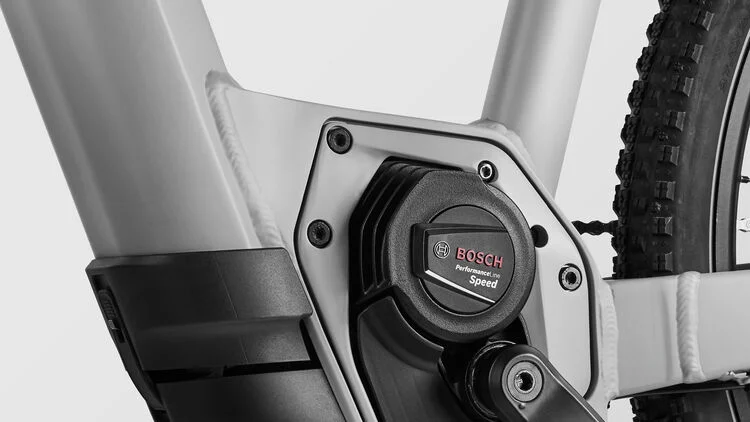

  • Bosch Performance Line
• Battery
  • Bosch BBP3755
• Rear Derailleur
  • Shimano CUES 10-speed
  • Cage length: short
  • Weight: 0.77 lbs
• Shift Lever
  • Shimano CUES U6000
  • Weight: 0.07 lbs
• Cassette
  • Shimano CUES LG300-10
  • Number of sprockets: 10
  • Range: 11-48
• Crank
  • FSA CK 220
  • Number of chainrings: 1
• Chainring
  • FSA Gen4 Spider Boost 42T
• Chain
  • Shimano LG500

Brakes

• Disc Brake
  • Shimano MT200
  • Number of pistons: 2
• Disc Brake
  • Shimano MT200
  • Number of pistons: 2
• Brake Rotor
  • Shimano RT30
  • Size: 180 mm
  • Weight: 0.42 lbs

Wheels

• Wheel
  • Alexrims Supra-BH 27.5 / Hub Shimano MT400-B 15x110
  • Axle dimension: 15x110 mm
  • Rotor mount: Center Lock
  • Rim height: 21 mm
  • Rim material: Aluminium
• Wheel
  • Alexrims Supra-BH 27.5 / Hub Shimano MT400-B 12x148
  • Axle dimension: 12x148 mm
  • Rotor mount: Center Lock
  • Rim height: 21 mm
  • Rim material: Aluminium
• Tyre
  • Maxxis Crossmark II Reflexstrip Clincher
  • Width: 2,25"
  • Weight: 1.65 lbs
• Thru Axle
  • Canyon GP0420 Rear Thru Axle
  • Axle dimension: 12x148 mm

Cockpit

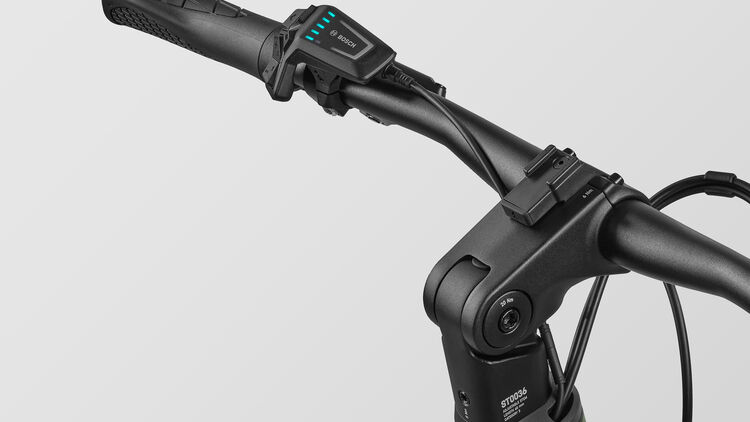

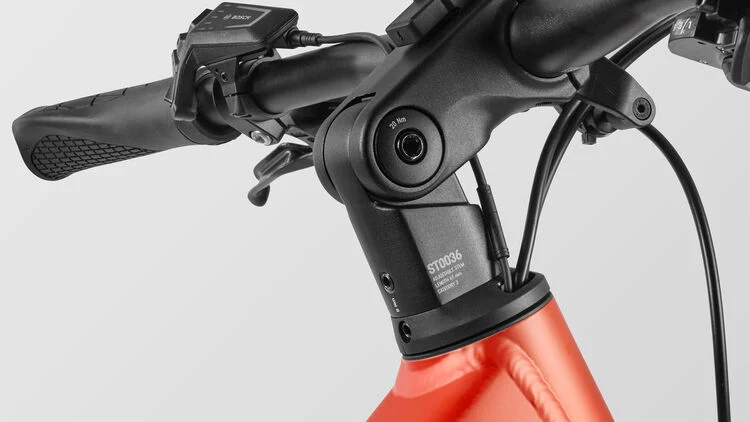

• Stem

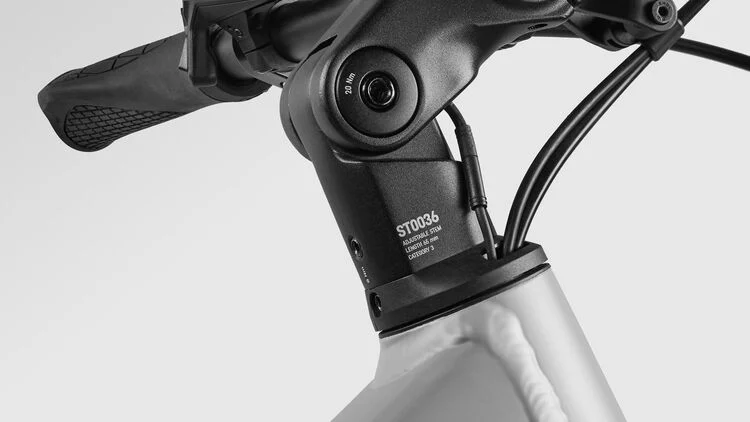

  • Canyon ST0036 Adjustable
  • Fork steer tube diameter: 1 1/8"
  • Clamping diameter: 31,8 mm
• Handlebar

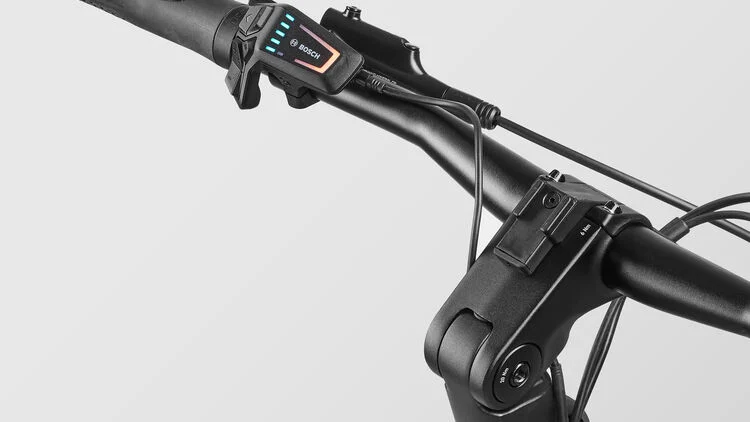

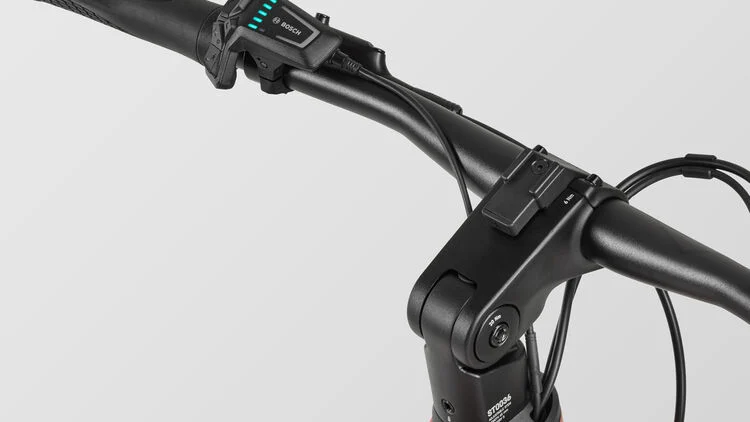

  • Iridium Flatbar
  • Clamping diameter: 31,8 mm
  • Width: 680 mm
  • Rise: 5 mm
• Grips
  • Ergon GA3 mini-wing
• Bells
  • Knog Oi Classic Bell

Seat

• Saddle
  • SR Royal Essenza+
  • Width: 225 mm
  • Gender: Unisex
  • Weight: 1.24 lbs
• Seatpost
  • Canyon SP0067
  • Clamp diameter: 30,9 mm
